Alternator Indicator

Indicator on instrument panel should come on with ignition on and engine not running. Lamp goes off when engine is accelerated above 900 RPM. When alternator voltage output is greater than battery voltage, indicator light should turn off.

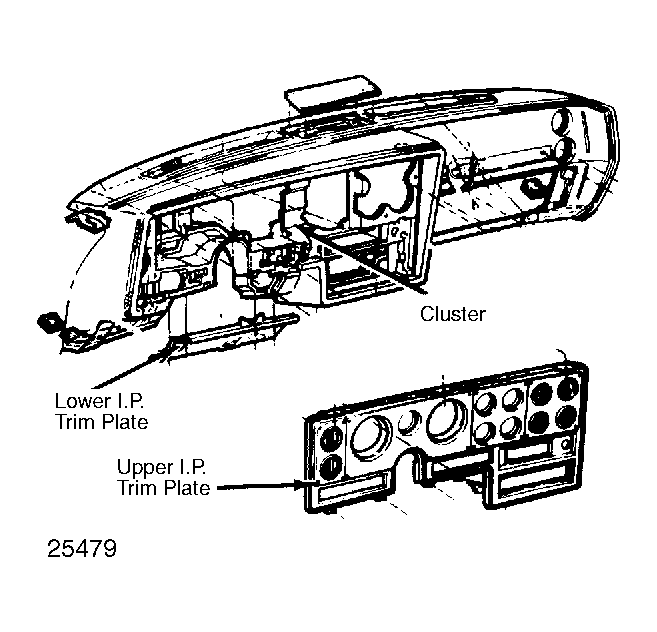

Fig 1: Bonneville & Grand Prix Instrument Cluster
G25479Courtesy of GENERAL MOTORS CORP.
