Shift and Select Cable Lever Assembly Replace

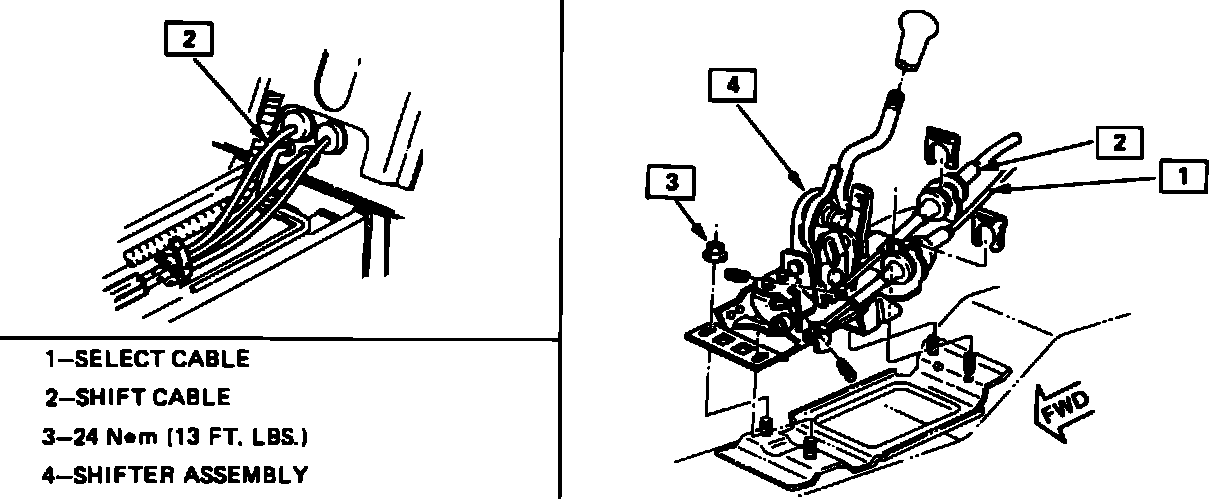

Shift Cable & Select Cable Routing:

REMOVE OR DISCONNECT

1. Cables from shift lever at transaxle.
2. Bolt from mount at transaxle.
3. Cotter key from crosshaft through rod at shift shaft.
4. Transaxle shift lever assembly.

INSTALL OR CONNECT

1. Shift lever assembly to shifter shaft.
2. Crosshaft through rod into shift lever assembly.
3. Cotter key into through rod.
4. Bolt through mount at transaxle.
5. Shift cables to shift levers at transaxle.
