Shift Cable Replace

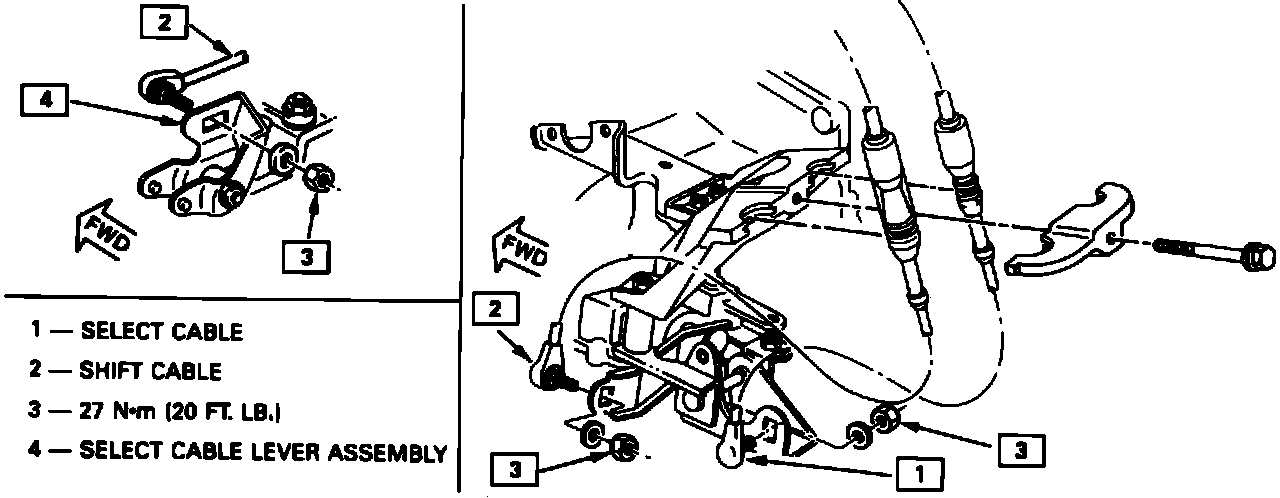

Shift & Select Cable Routing:

REMOVE OR DISCONNECT

1. Negative battery cable.
2. Place shifter in first gear.
3. Shift knob.
4. Front trim plate.
5. Shifter trim plate.
6. Rear console pad assembly.
7. ECM.
8. ECM. electrical connections.
9. Front carrier to I/P reinforcement.
10. Carrier reinforcement
11. Carpet clips and rivets at console.
12. Heater control.
13. Radio.
14. Carrier.
15. Shift cable and select cable from shifter.
16. Release rubber grommet on cable from body.
17. With transaxle in first gear, remove cables at gear select lever assembly.
18. Mount attaching shift cable and select cable assemblies to transaxle.
19. Shift and select cables from transaxle.
20. Pull cables through body into passenger compartment.


INSTALL OR CONNECT

1. Pilot cable from passenger side through body into engine compartment.
2. Cables to mounting bracket at transaxle.
3. Shift cables to transaxle.
4. With transmission lever assembly in first gear position, cables to lever assembly.
5. Shift cables to shifter assembly.
6. Rubber grommet on cable to body.
7. Carrier assembly, console.
8. Radio.
9. Heater control.
10. Carpet clips and rivets at console.
11. Carrier reinforcements.
12. ECM. electrical connection.
13. ECM.
14. Front pad assembly.
15. Front pad trim plate.
16. Rear console pad assembly.
17. Shift trim plate.
18. Shift knob.
19. Negative battery cable.
