Home >> Pontiac >> 1986 >> Fiero L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Circuit Check - With TBI >> With Diagnostic Scan Tool >> Definition of Codes 33 and 34

Definition of Codes 33 and 34

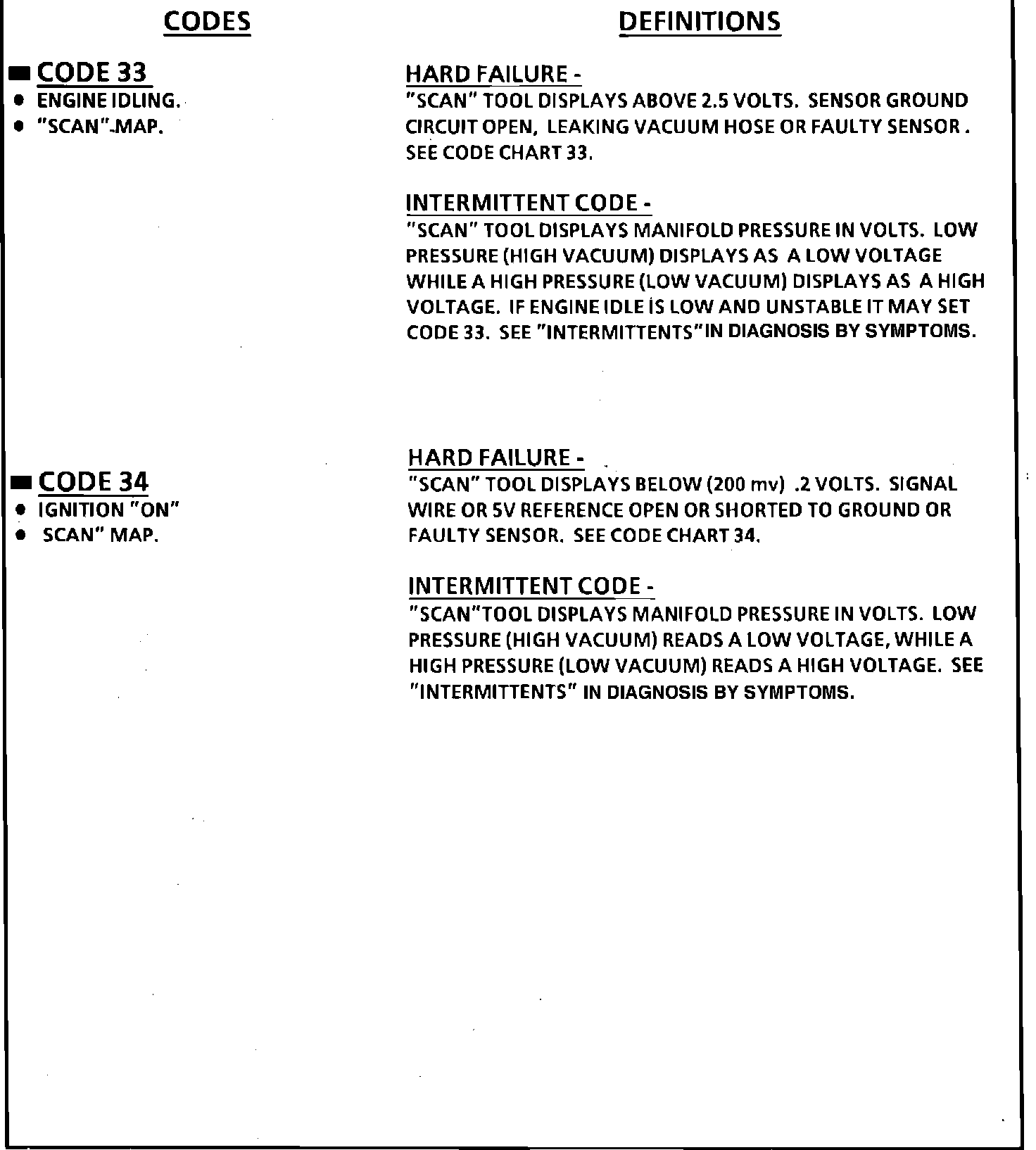

Fig. 5 DEFINITIONS OF CODES 33, AND 34:
