Coolant Temperature Sender/Switch

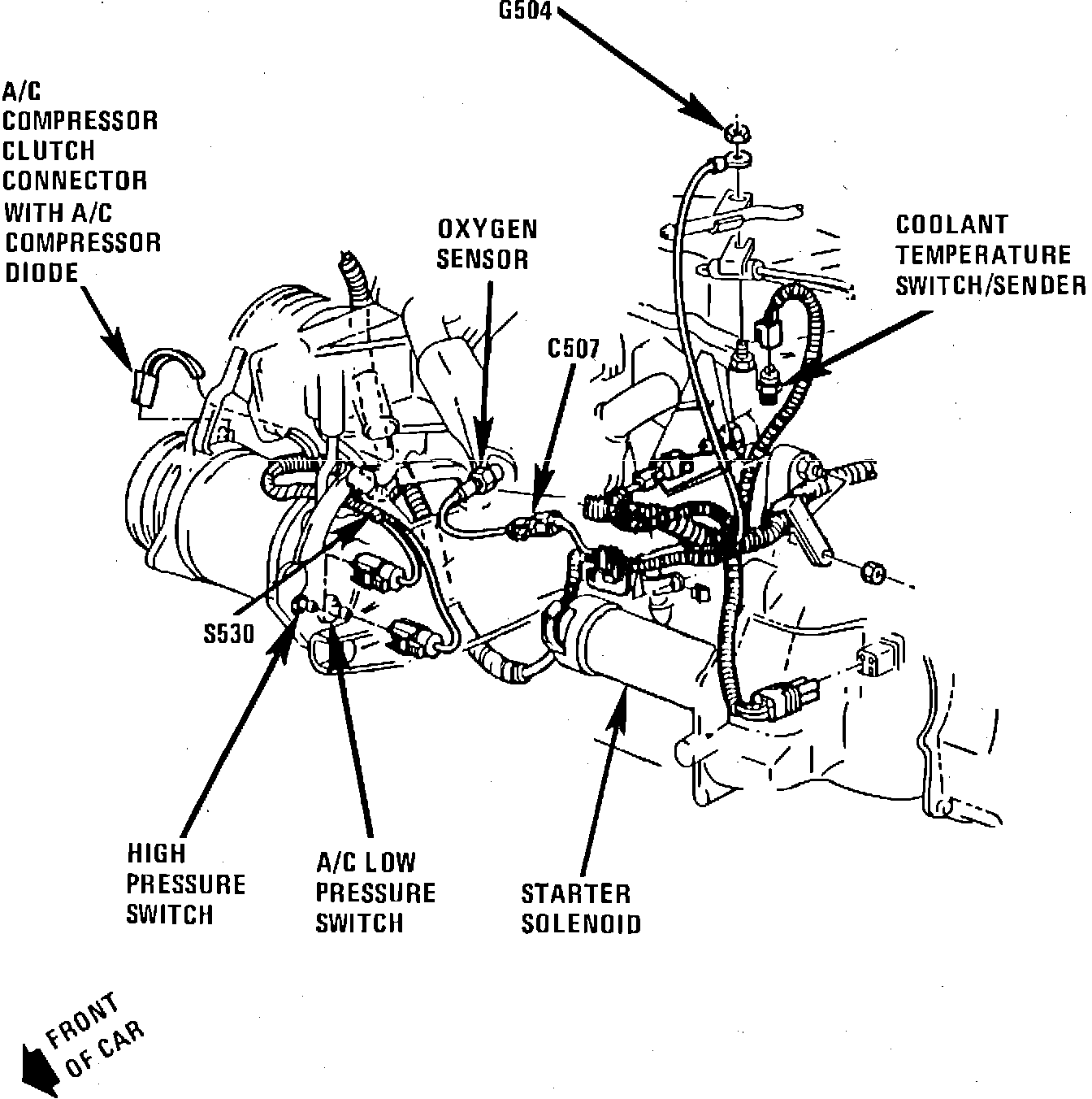

Front Of Engine.:




Front Of Engine

Applicable to: 1986 4-150/2.5L

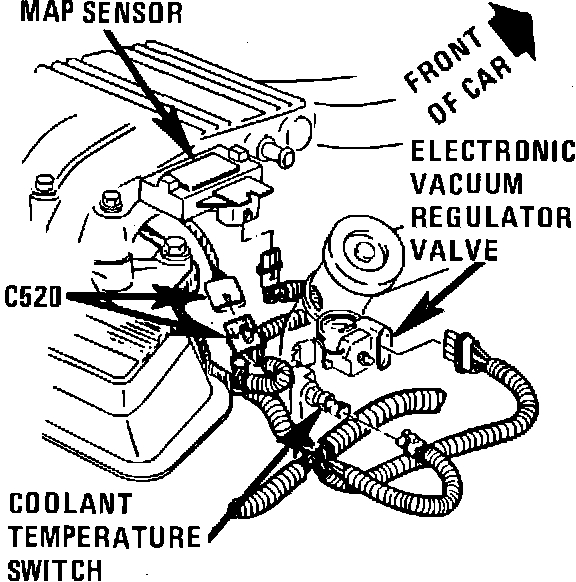

Front Of Engine.:




LH Top Of Engine

Applicable to: 1987 4-150/2.5L

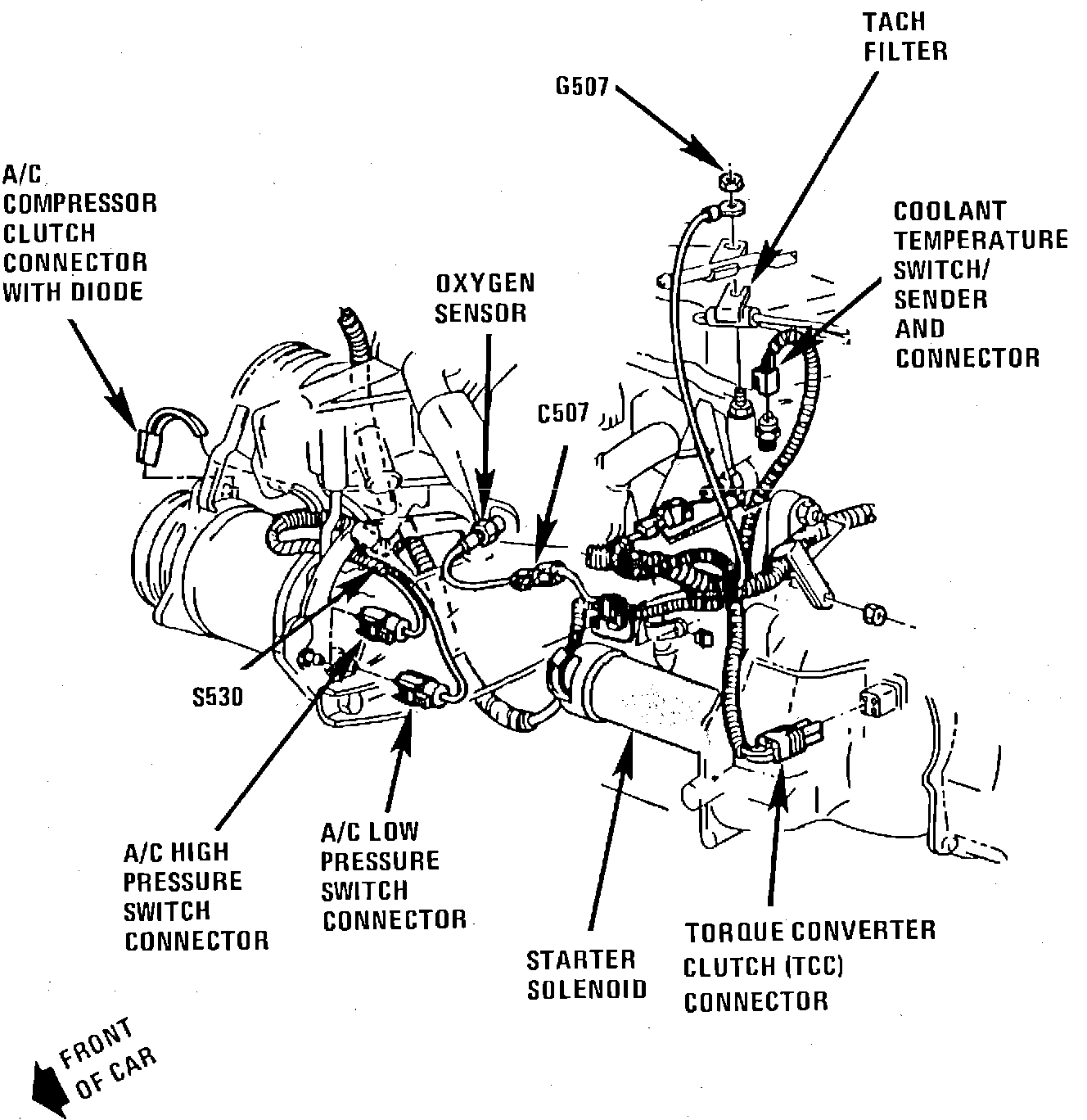

RH Top Of Engine.:




(V6-173/2.8L):[0R] Top LH Side Of Engine, Above Exhaust Manifold

Applicable to: 1987 V6-173/2.8L
