Part 1 of 2

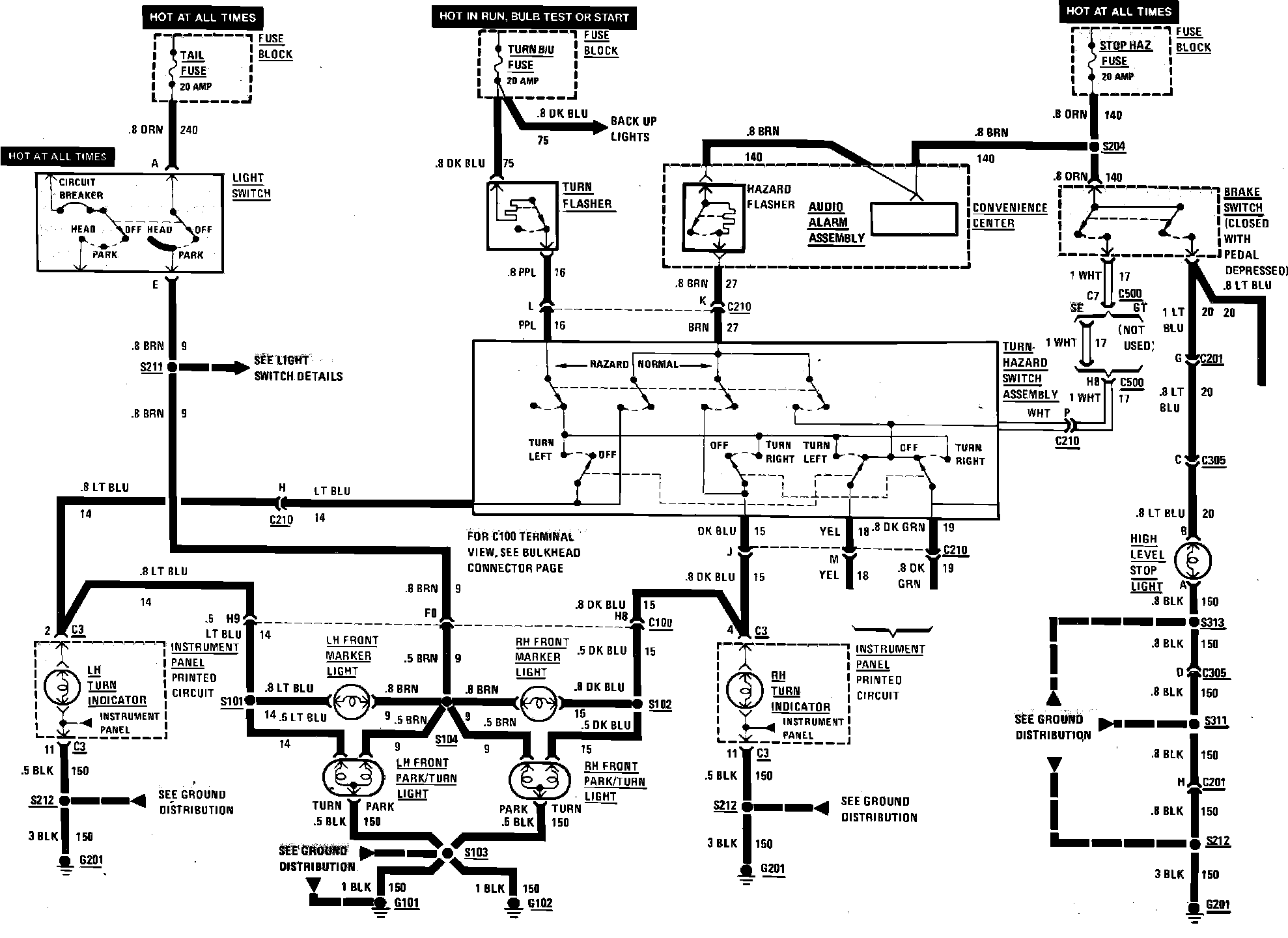

Front Marker, Hazard, Stop & Turn Signal Lamps Wiring Circuit:



Front Marker, Hazard, Stop & Turn Signal Lamps Wiring Circuit (SE Models):
