Pontiac
>>
1986
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

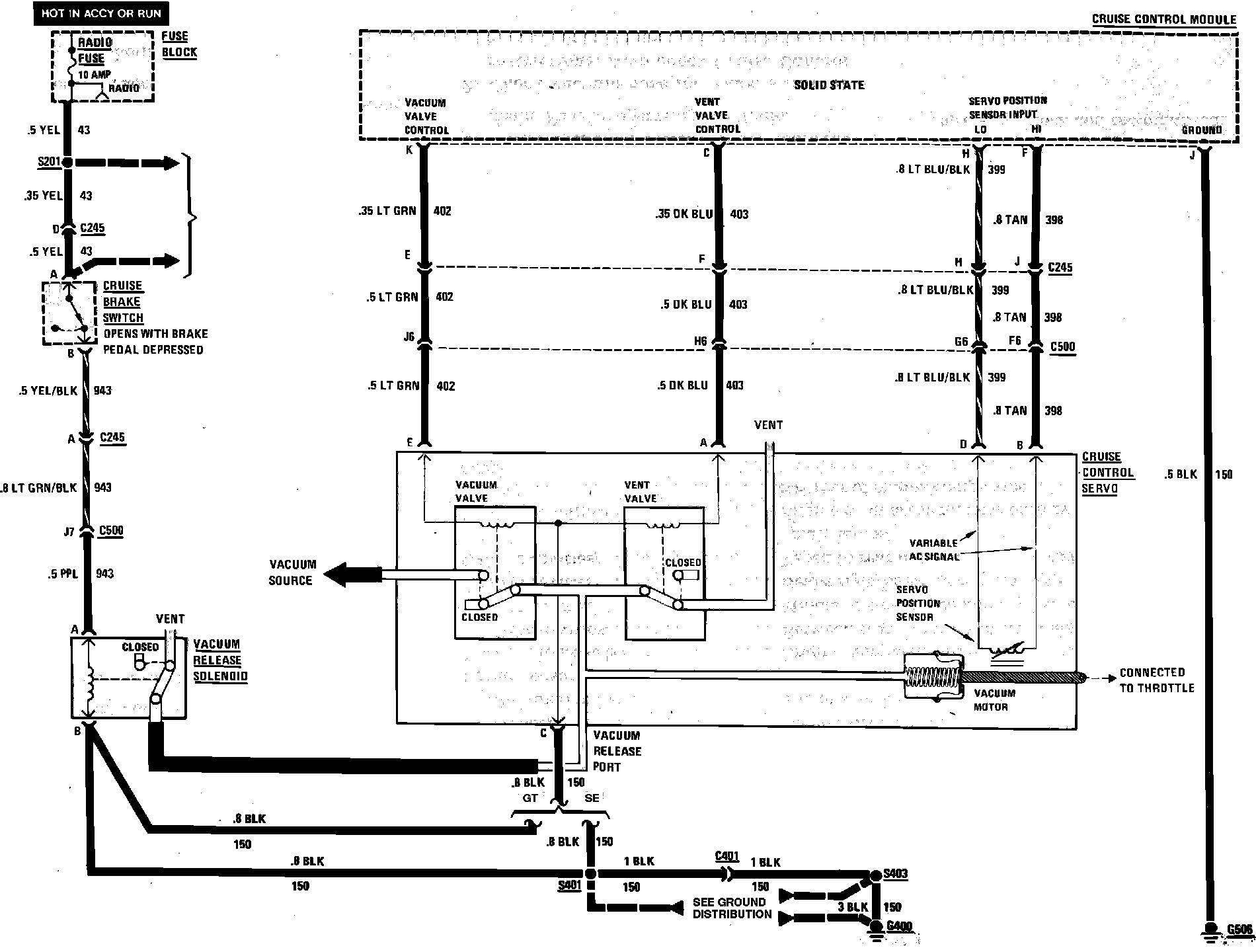

Cruise Control Vacuum Circuit:

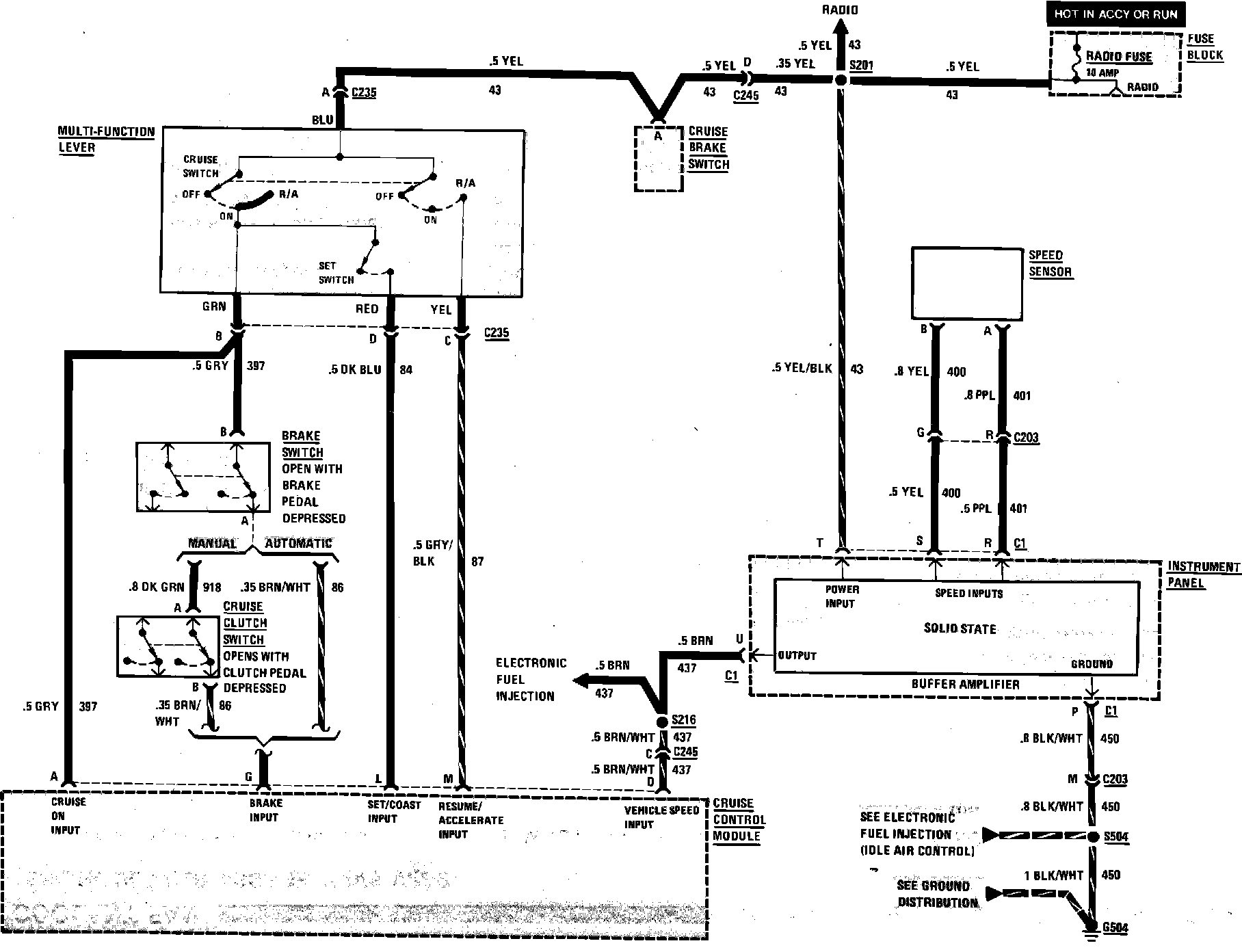

Cruise Control Wiring Circuit:
