Vacuum Break Adjustment

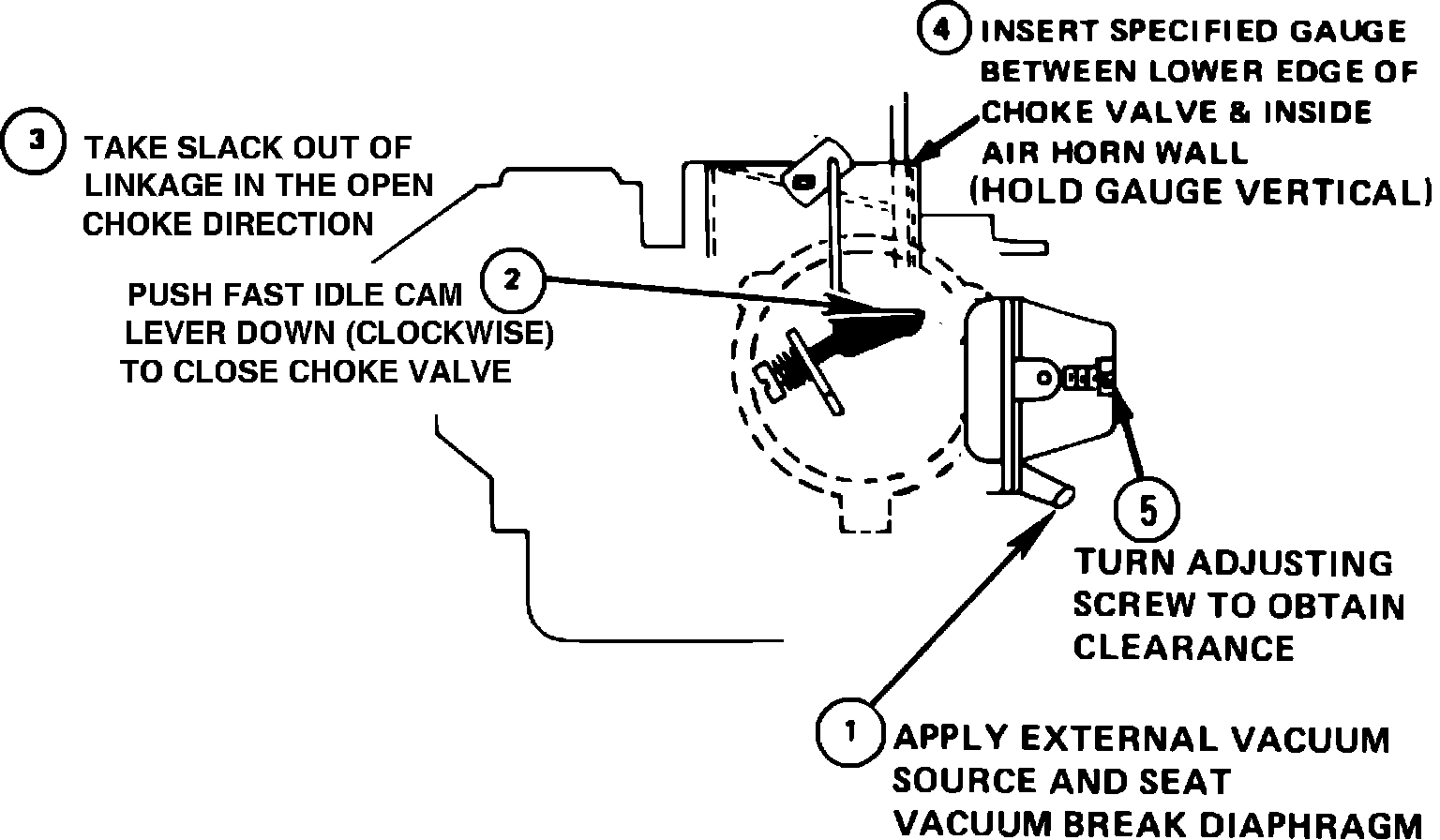

Fig. 7 Vacuum break adjustment:

Fig. 7-Remove adjusting screw plug. Apply an external vacuum source to vacuum break to seat diaphragm. Rotate fast idle cam clockwise to close choke valve. Remove slack from linkage in the choke open direction. Insert the specified gauge between choke valve and air horn wall. Turn adjusting screw to obtain clearance.
