Torque Converter Clutch (TCC)

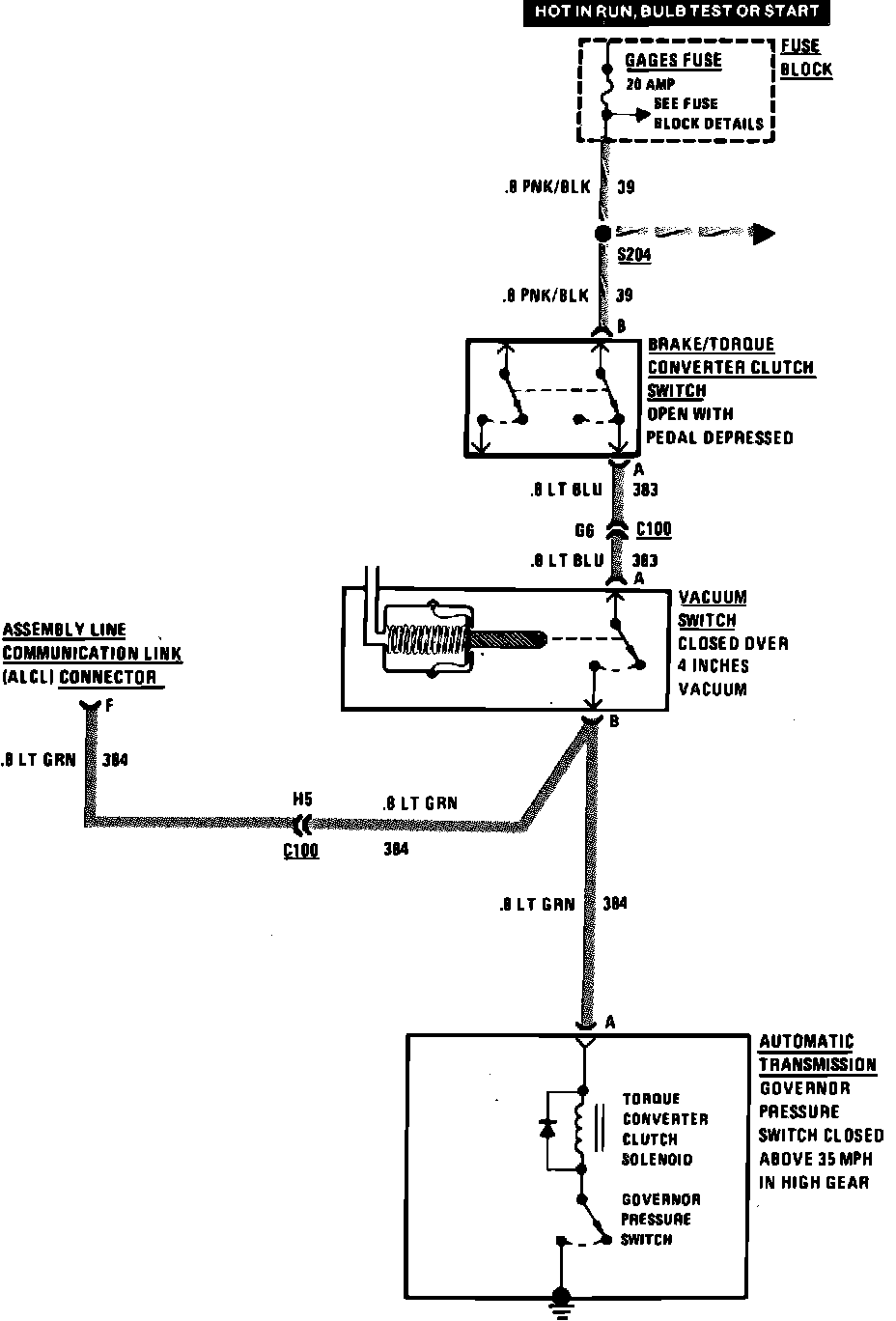

Fig. 35 Torque Converter Clutch Wiring Circuit, Gas. 1985 Chevette & T1000:
