Choke Heater, Warning Indicator & Float Bowl Vent Valve
Choke Heater, Warning Indicator & Float Bowl Vent Valve

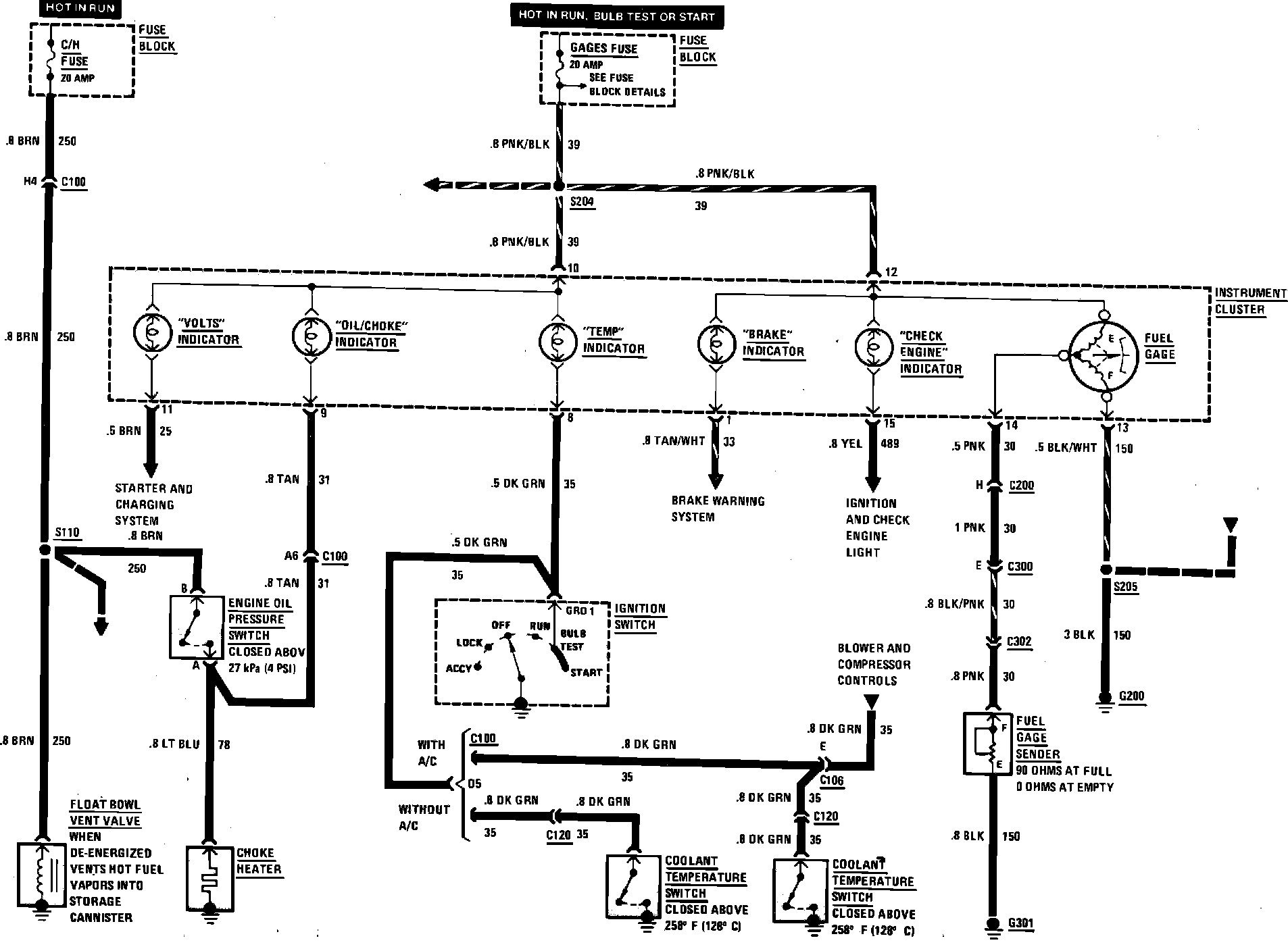

Fig. 37 Warning Indicators, Choke Heater & Float Bowl Vent Valve Wiring Circuit. 1985 Chevette & T1000:
