Check Engine Light, Early Fuel Evaporation & Ignition

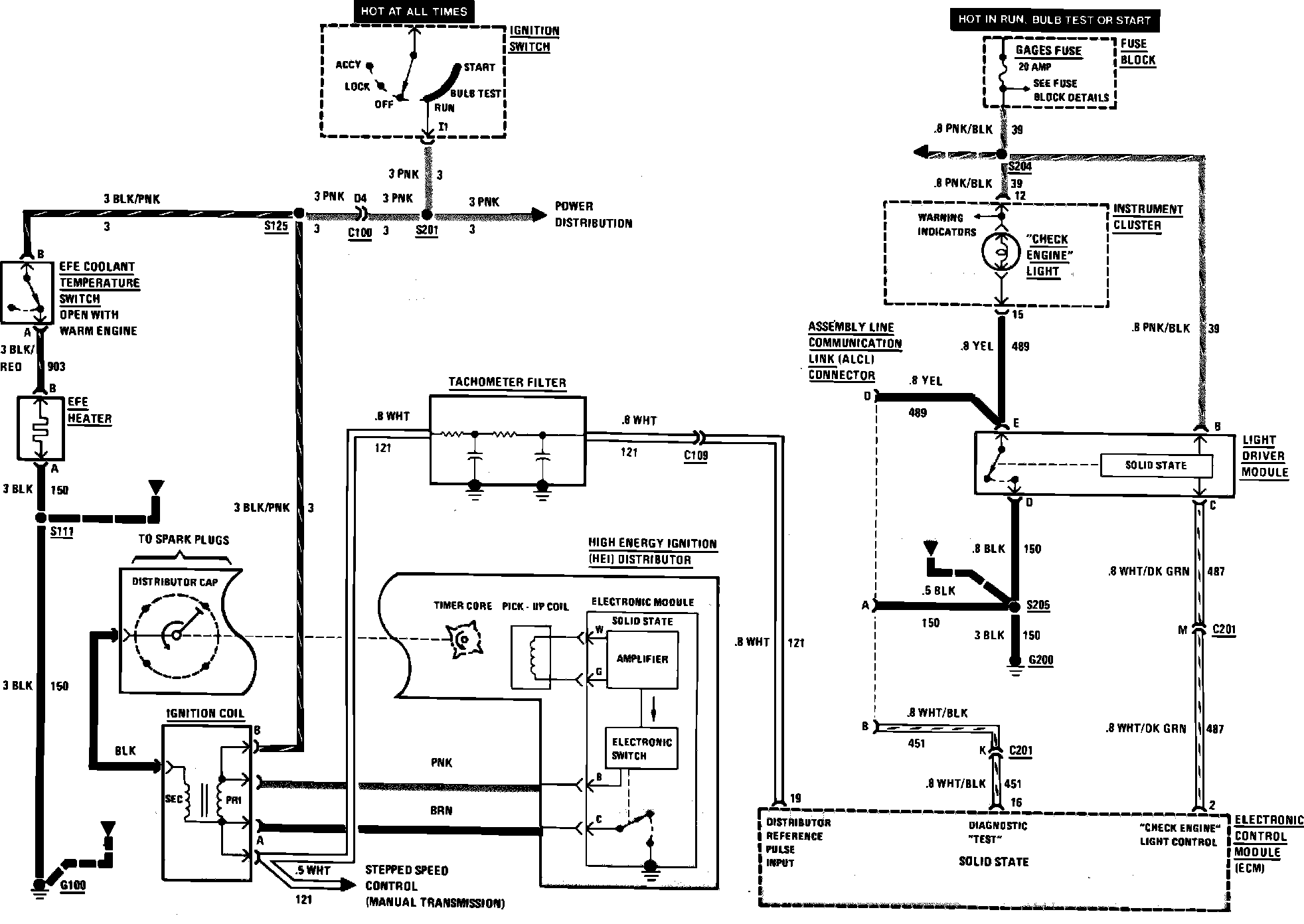

Fig. 9 Computer Command Control Wiring Circuit. (Check Engine Light, Early Fuel Evaporation & Ignition). 1985Chevette & T1000:
