Lower

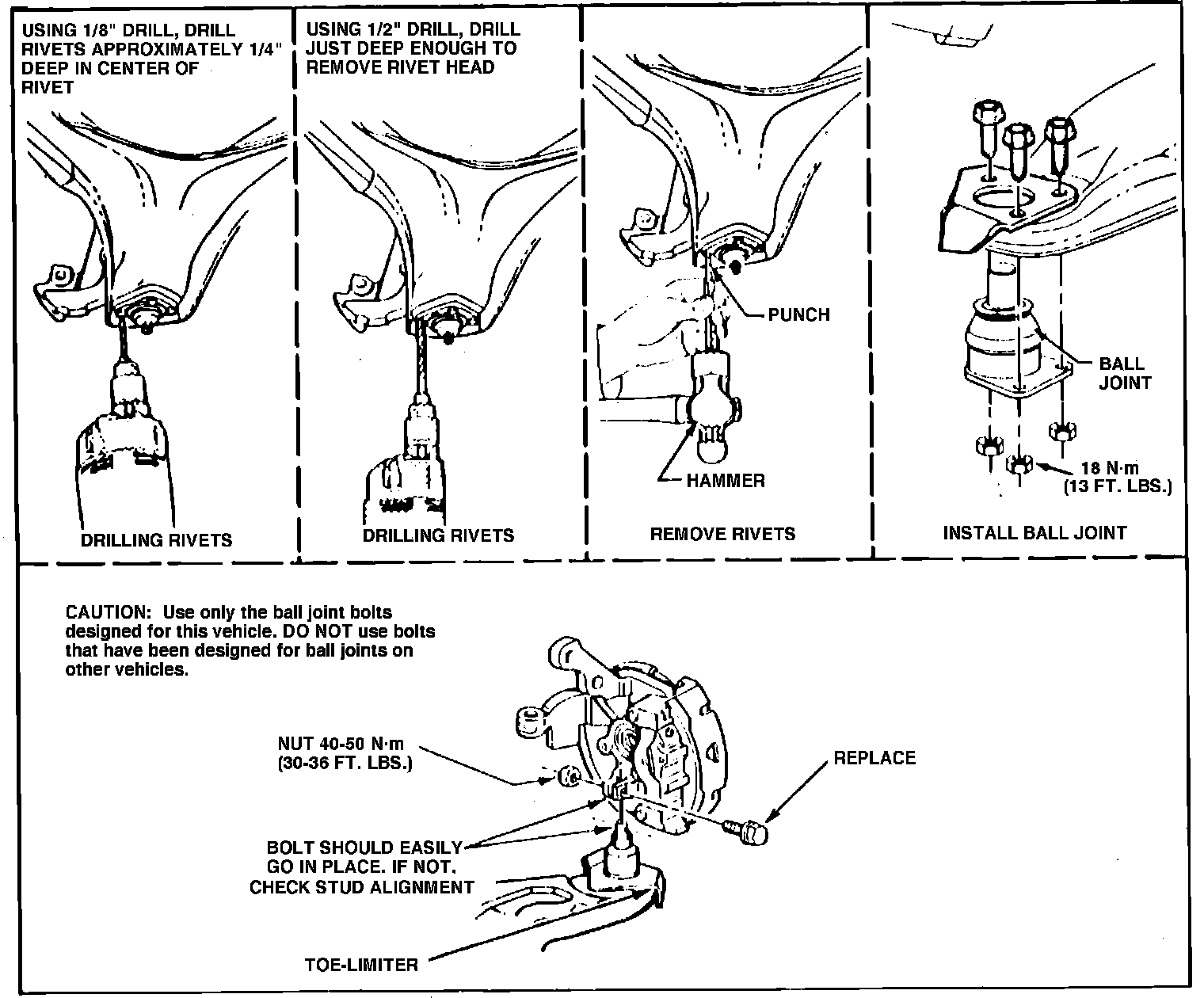

Fig. 7 Lower ball joint replacement:
1. Raise and support vehicle.
2. Remove wheel and tire assembly, then the ball stud clamp bolt.
3. Disconnect ball joint from knuckle by tapping with a mallet.
4. Replace ball joint as shown in Fig. 7.
1. Raise and support vehicle.
2. Remove wheel and tire assembly, then the ball stud clamp bolt.
3. Disconnect ball joint from knuckle by tapping with a mallet.
4. Replace ball joint as shown in Fig. 7.
