Figure 11 Rear Wheel Drive Models W/V6-173 (2.8L) TBI, (Vin S)
Figure 11 Rear Wheel Drive Models W/V6-173 (2.8L) TBI, (Vin S)

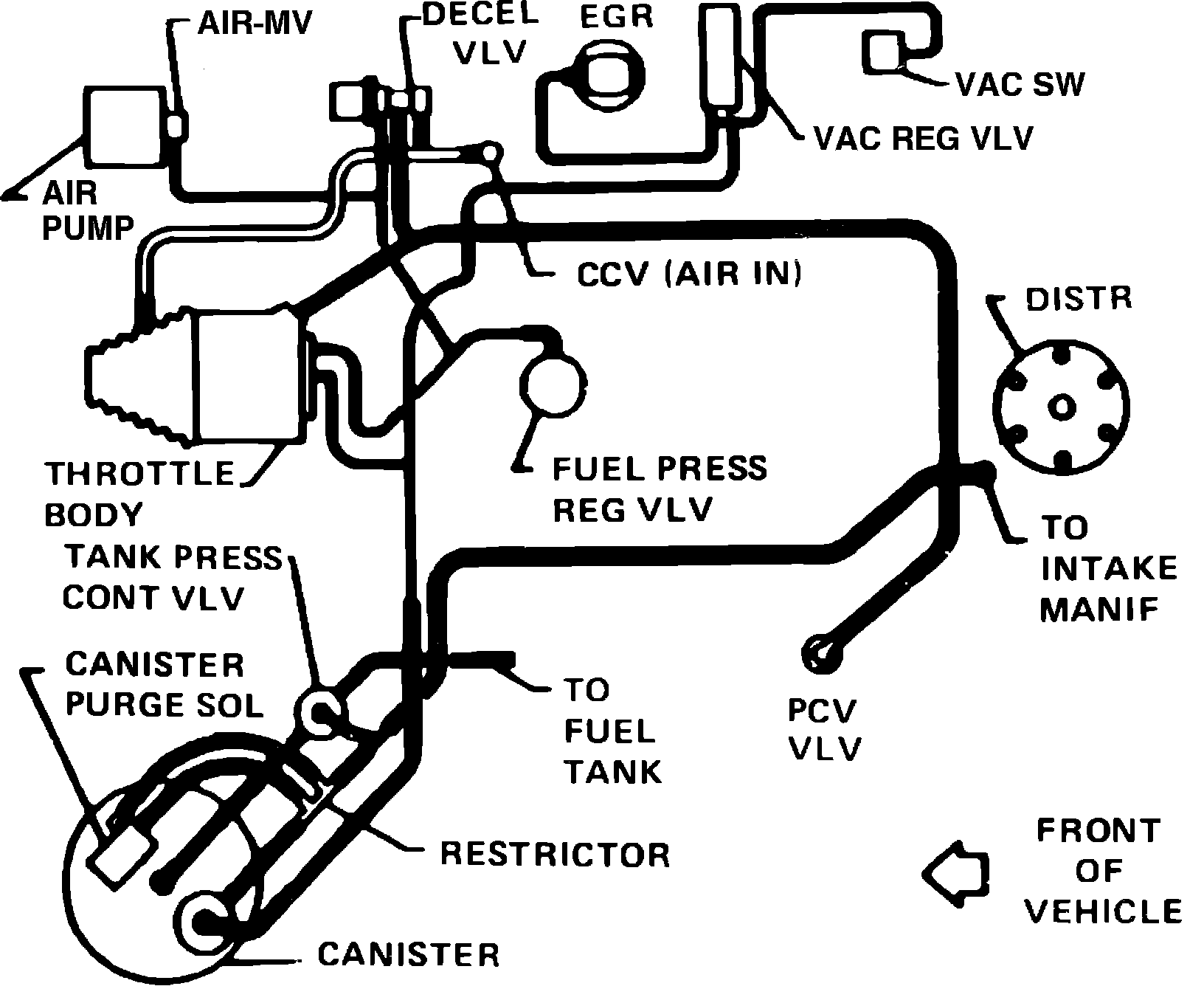

Fig. 11 Vacuum Hose Routing. 1985 Rear Wheel Drive Models W/V6-173 (2.8L) TBI, (VIN S):
