Clutch Replace

1. Remove transaxle as described under "Manual Transaxle, Replace."

2. Mark position of pressure plate to flywheel for assembly reference.

3. Gradually loosen pressure plate attaching bolts until spring pressure is relieved.

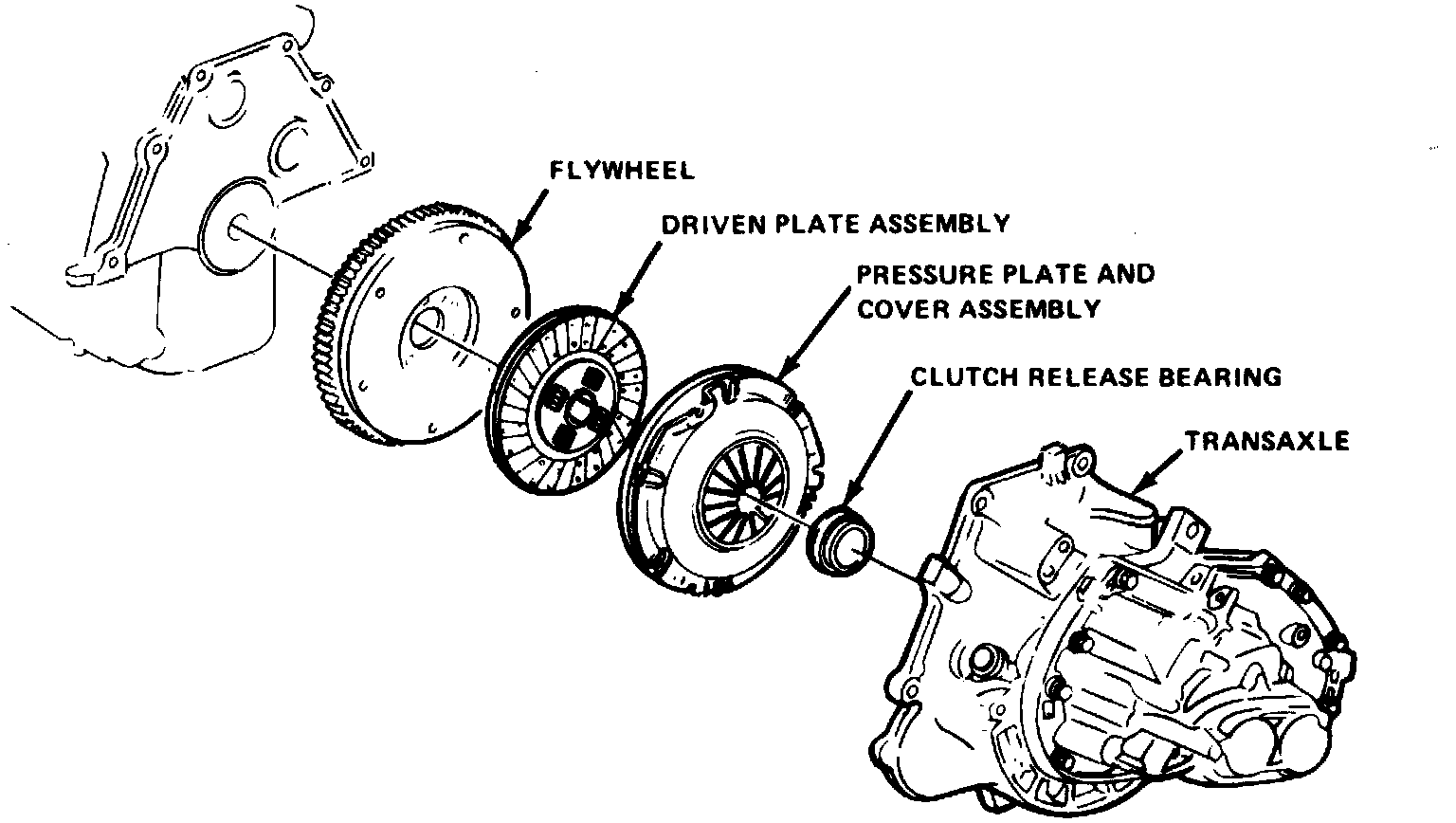

4. Support pressure plate and remove mounting bolts, pressure plate and driven disc, see accompanying figure.
