Clutch Master Cylinder: Service and Repair

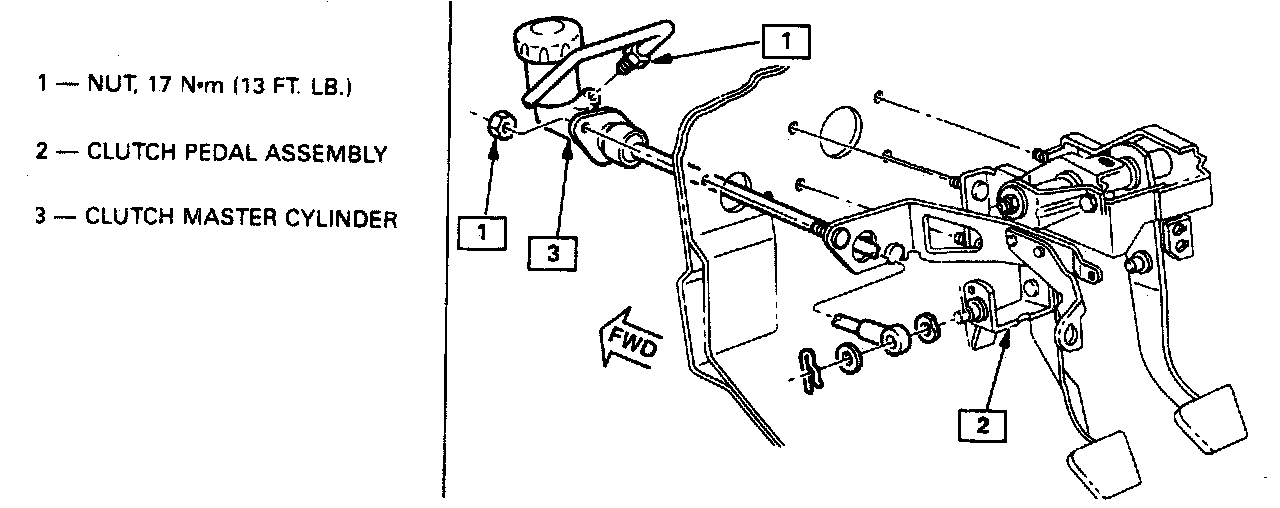

CLUTCH MASTER CYLINDER






Remove or Disconnect

1. Cylinder push rod at clutch pedal.
2. Hydraulic line at master cylinder.
3. Nuts attaching cylinder to cowl, remove cylinder.






Install or Connect

1. Position cylinder push rod through cowl and loosely install cylinder to cowl nuts.
2. Cylinder push rod to clutch pedal with spring clip.

Tighten

Torque cylinder to cowl nuts to 17 Nm ( 13 lb.ft. ).
