A/T Case Intermediate Servo Orifice - Eliminated

Number 86-7-19 Date 4/86
Subject: THM 125, 125C TRANSAXLE CASE INTERMEDIATE SERVO ORIFICE ELIMINATED

ALL 6000, FIERO, 2000 AND GRAND AM

TRANSAXLE CASE:

Figure 3 - TRANSMISSION NAMEPLATE:

Beginning April 15, 1985 (Julian date 105) for U.S. models, and April 11, 1985 (Julian date 101) for Canadian models (Refer to Figure 3), 125 and 125C transaxles are being produced using a case with the intermediate servo bleed orifice eliminated.

Either transaxle case is used for all applications in service.

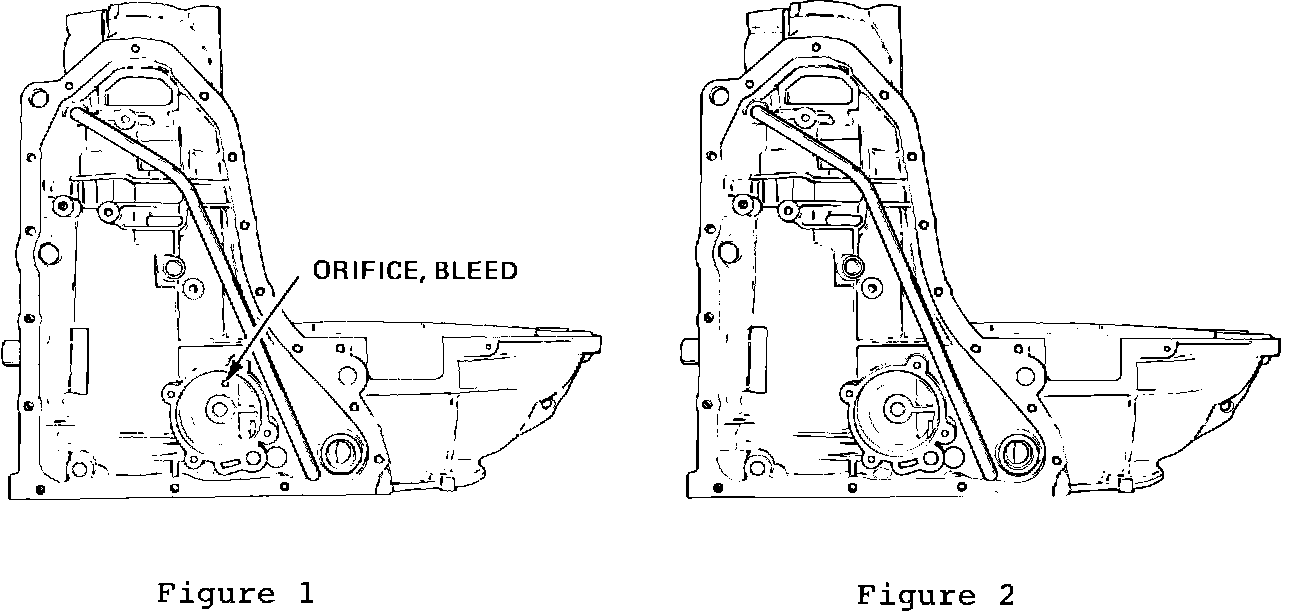

Use Figure 2 to update your 1985 Service Manual.. Figure 1 shows past design.
