Manual Shift Linkage Adjust

1. Place transaxle shift lever in "Neutral" position.

2. Place transaxle lever in "Neutral" position by rotating transaxle lever clockwise from "Park" through "Reverse" and into "Neutral."

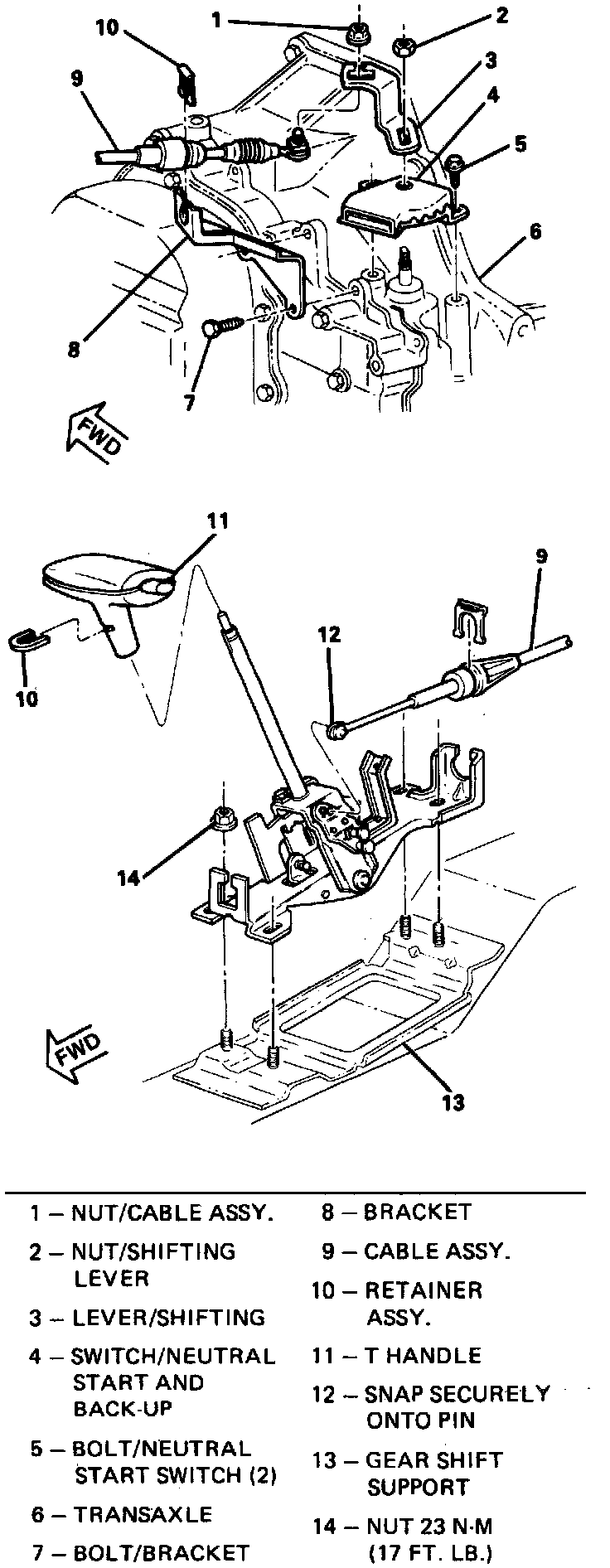

3. Insert shift cable threaded pin through slotted hole in lever and hand start nut, see image.

4. Torque nut to 15-25 ft lbs. while holding lever out of "Park" position.
