Output Shaft

1. Remove output shaft loading tool bracket and adapter, then install output shaft.

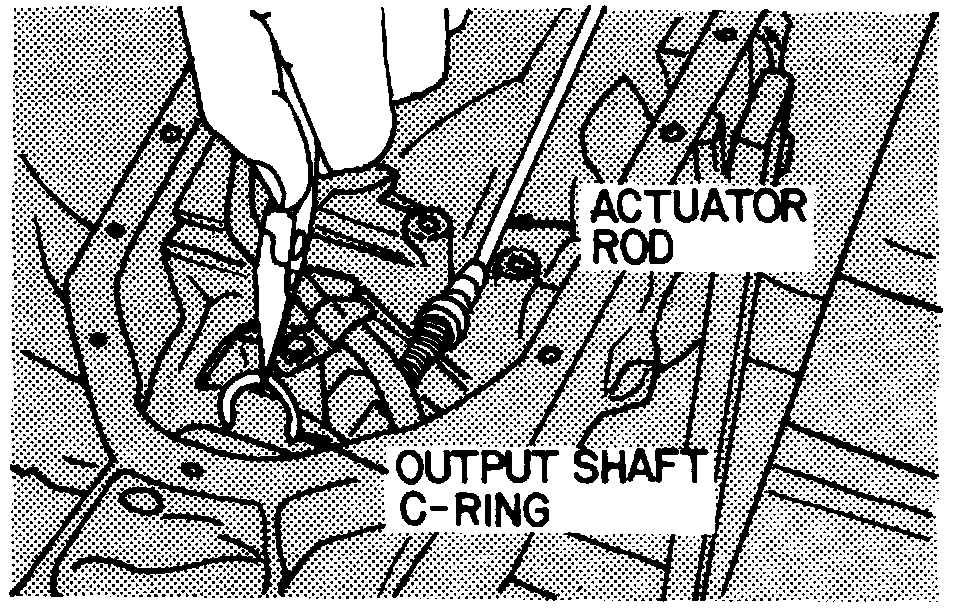

2. Position final drive so that C-ring groove on shaft is visible through case access window, then install C- ring, see image.

3. Complete installation of C-ring using tool J-28583.
