Igntion System - Revised Diagnostic Chart C-4B
Number 86-6(Gasoline)-25 Date 3/86Subject: REVISED DIAGNOSTIC CHART C-4B
1982-86 1.8L-L4 (VIN CODES 0) 1982-86 2.5L-L4 (VIN CODES U, R, 2)
DRIVEABILITY AND EMISSIONS:

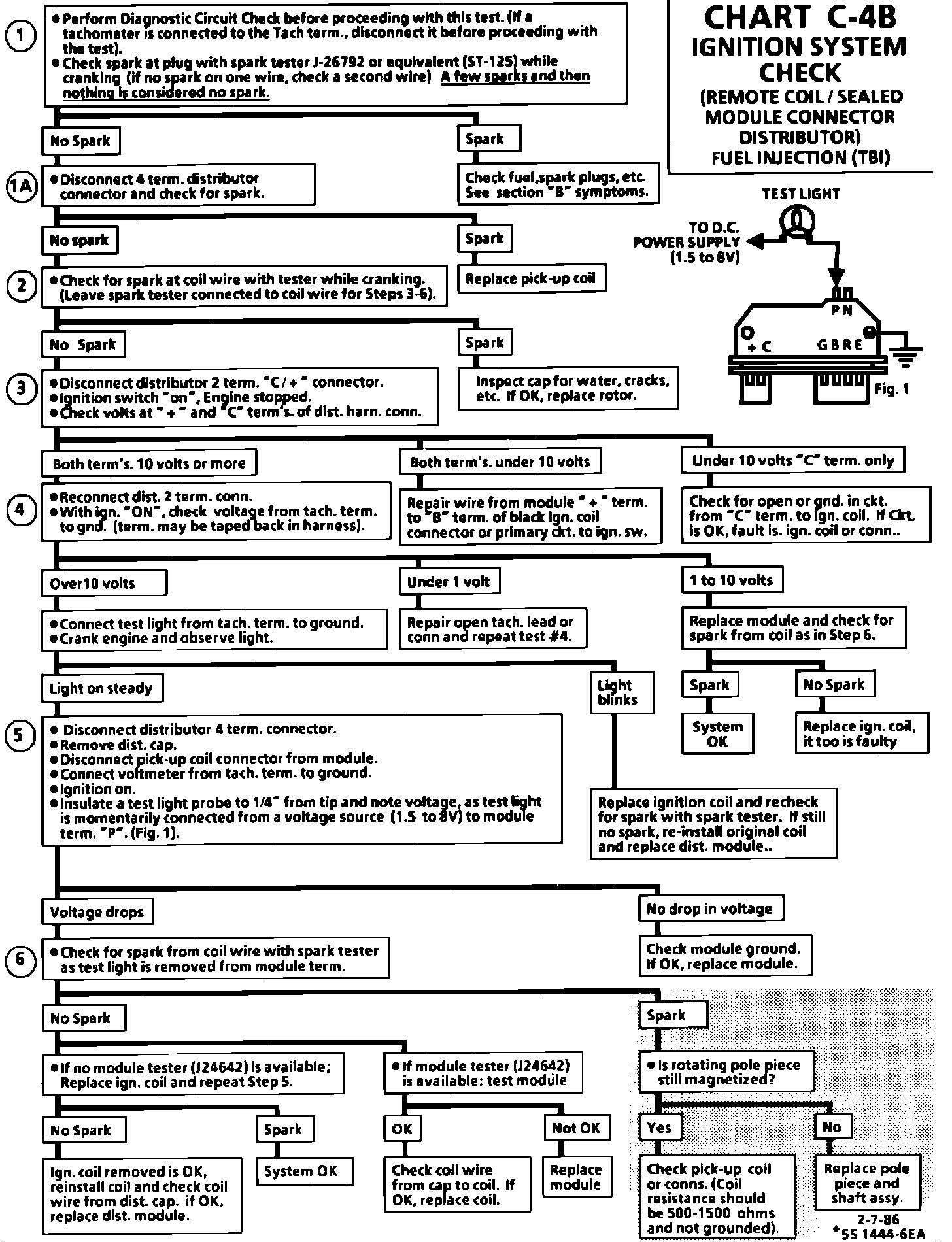

Chart C-4B Ignition System Check "Remote Coil-Sealed Module Connector Distributor Ignition System Check-TBI", has been revised. The change (shaded) should be noted in applicable service manuals.
