Concealment Plug Removal

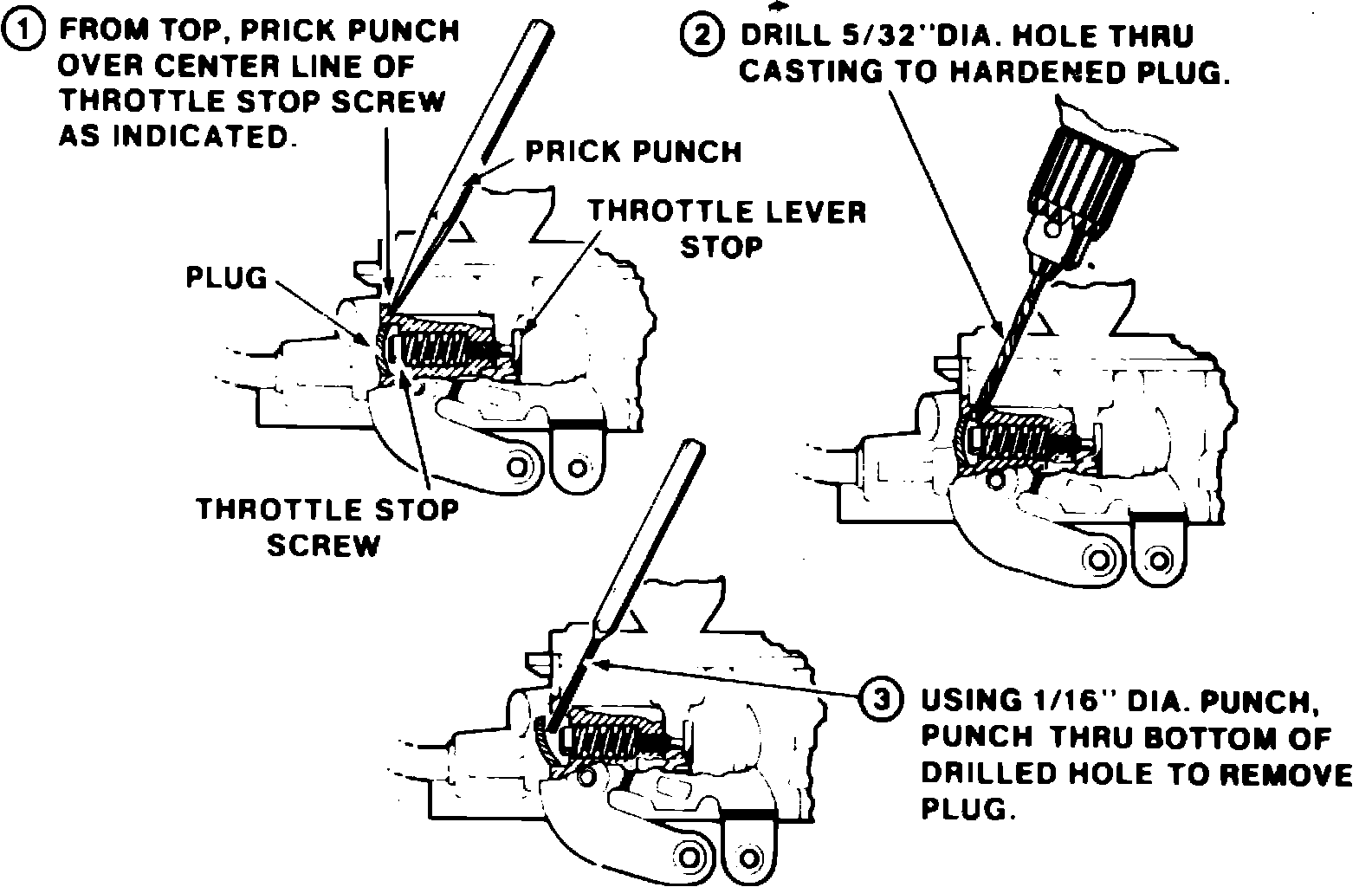

Fig. 169 Throttle stop screw tamper resistant plug removal.:
If necessary to the minimum air rate, the concealment plug must first be removed. Refer to Fig. 169 when removing the plug.
If necessary to the minimum air rate, the concealment plug must first be removed. Refer to Fig. 169 when removing the plug.
