Pontiac
>>
1985
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Figure 9 4-151 (2.5L) TBI, (Vin R)
Figure 9 4-151 (2.5L) TBI, (Vin R)

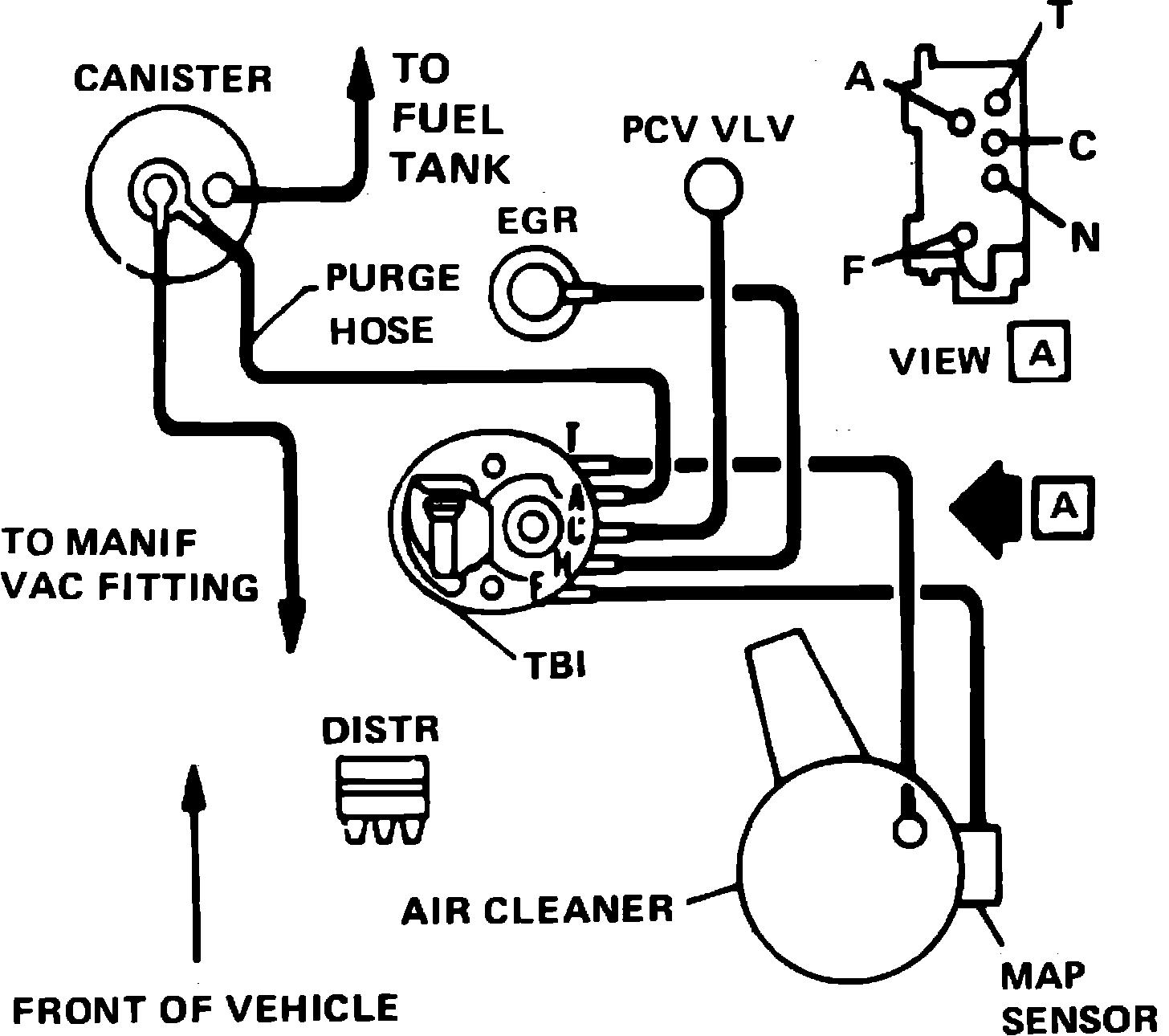

Fig. 9 Vacuum Hose Routing. 1985 4-151 (2.5L) TBI, (VIN R):
