Figure 10 Rear Wheel Drive Models W/4-151 (2.5L) TBI, (Vin R)
Figure 10 Rear Wheel Drive Models W/4-151 (2.5L) TBI, (Vin R)

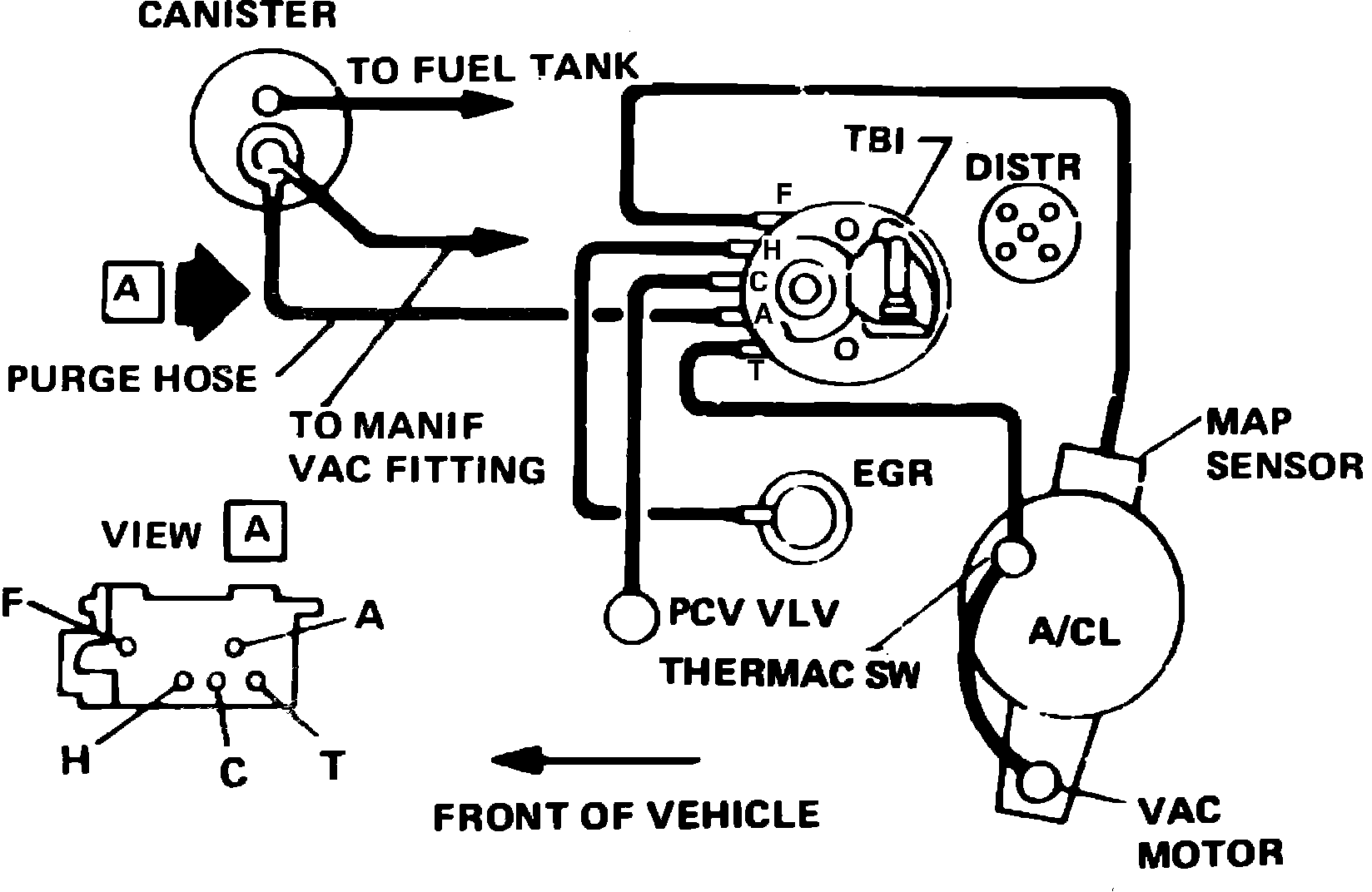

Fig. 10 Vacuum Hose Routing. 1985 Rear Wheel Drive Models W/4-151 (2.5L) TBI, (VIN R):
