Check Engine Light, Ignition System & Tachometer

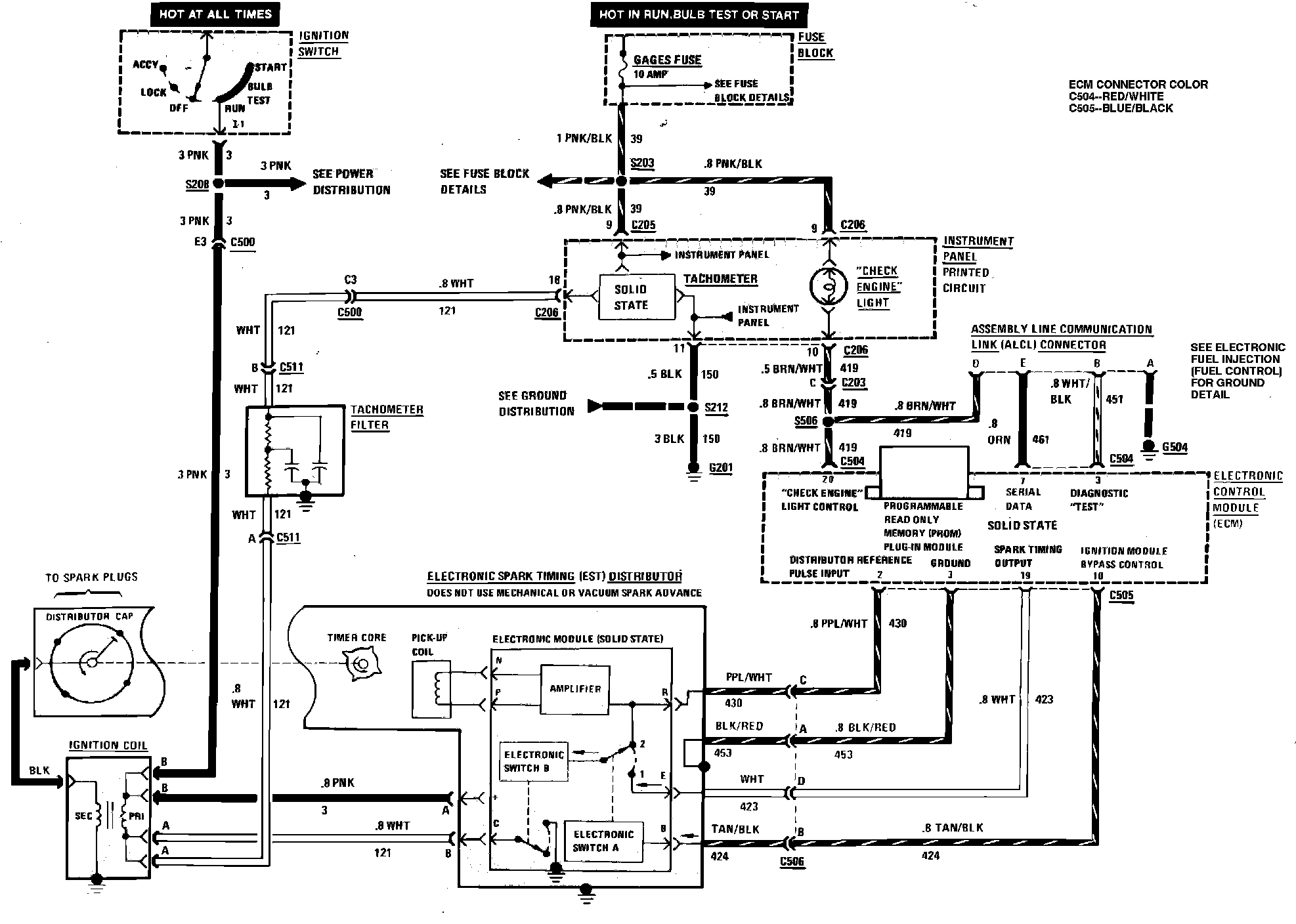

Electronic Fuel Injection Wiring Circuit (Check Engine Light, Ignition & Tachometer):
