- Diagnosis By Symptom - High Energy Ignition (HEI) System
>>
Engine Cranks, But Will Not Start
>>
With Fuel Injection and Remote Coil
With Fuel Injection and Remote Coil

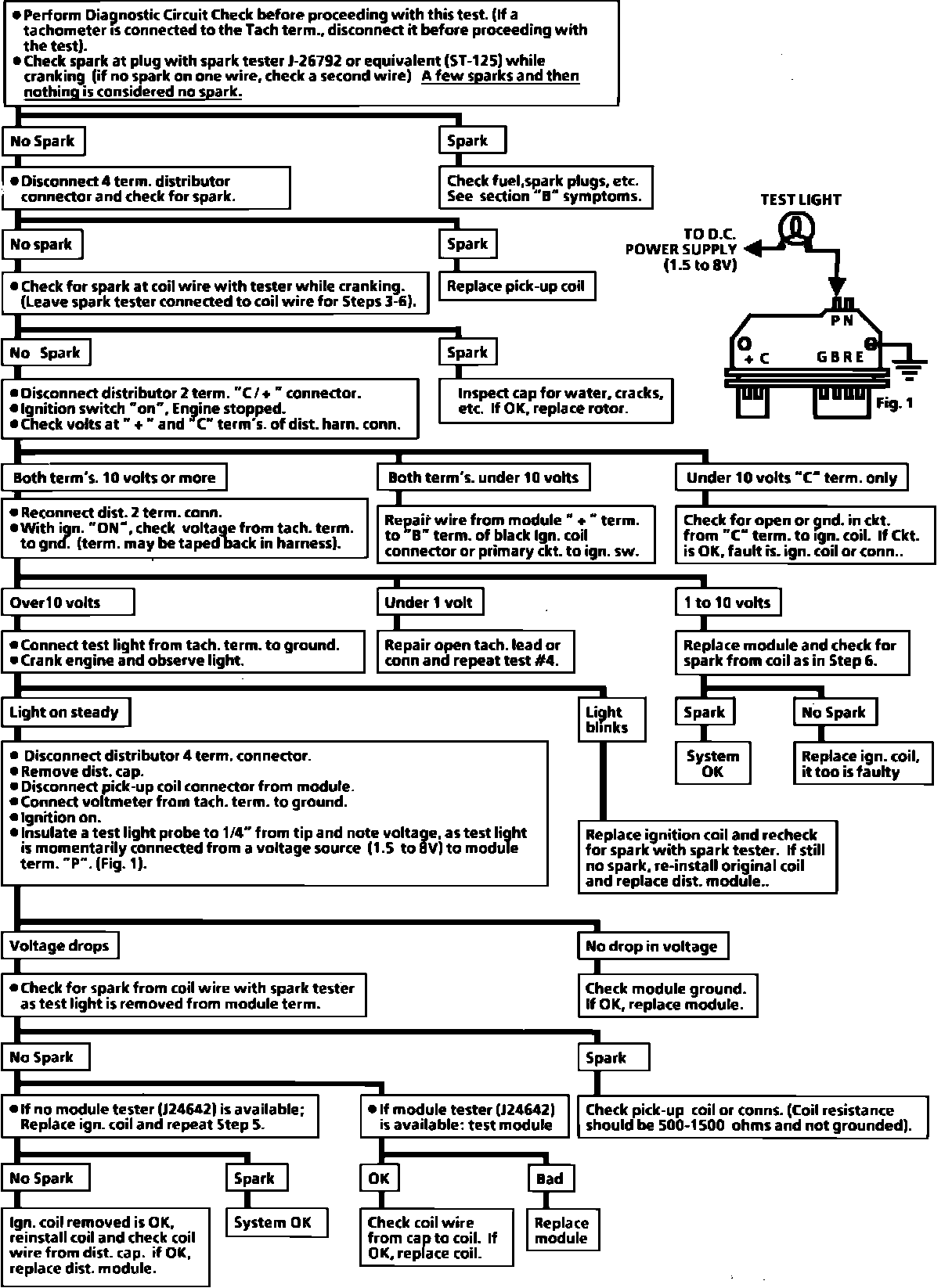

Fig. 3e HEI-EST ignition system diagnostic chart (Part 5 of 10). 1985-86 models w/TBI & 1985-86 V6-173/2.8L w/port injection & remote coil:
