- Diagnosis By Symptom - High Energy Ignition (HEI) System
>>
Engine Cranks, But Will Not Start
>>
With Electronic Spark Timing (EST)
With Electronic Spark Timing (EST)

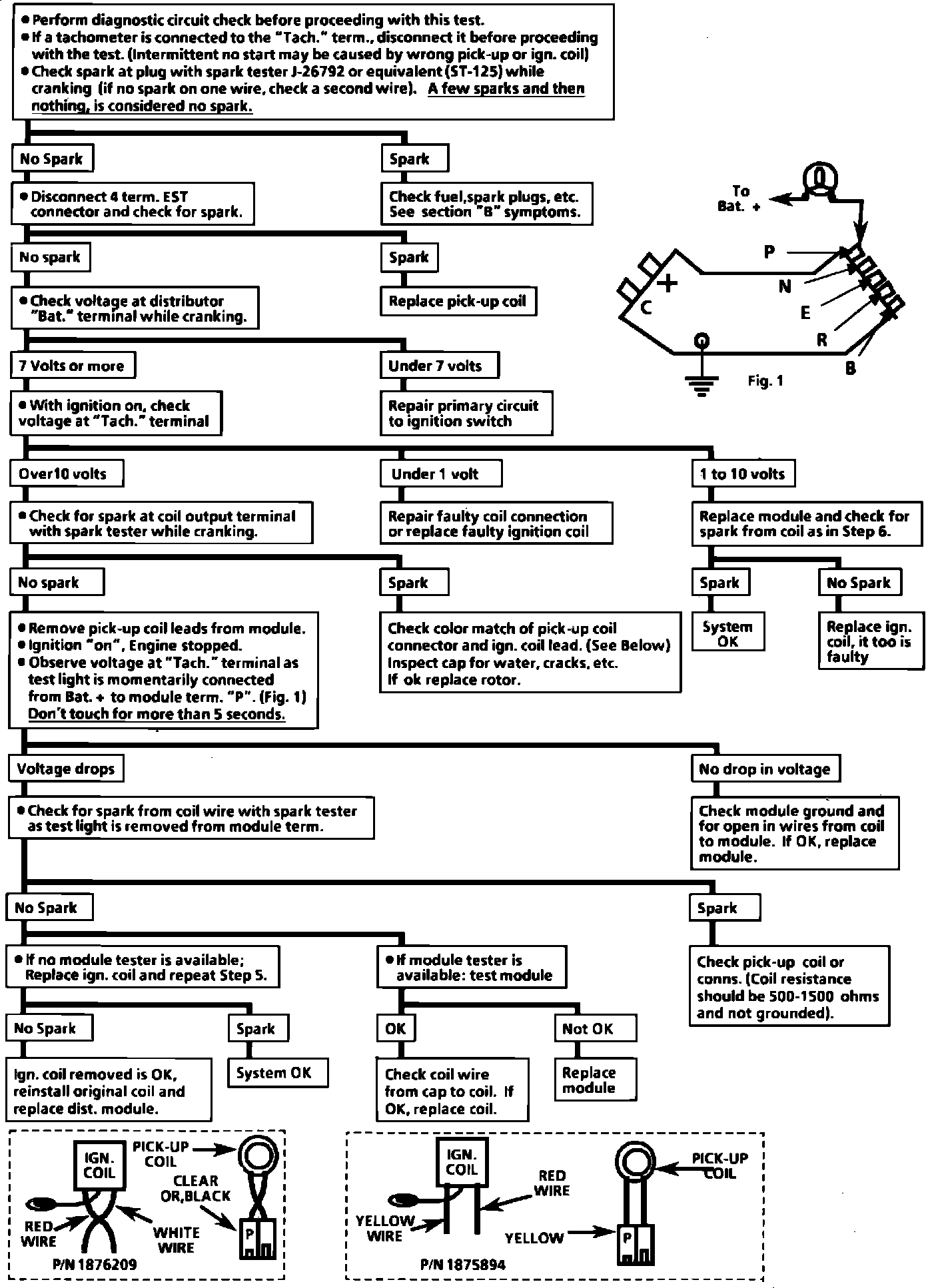

Fig. 3h HEI-EST ignition system diagnostic chart (Part 8 of 10) 1985-88 models w/integral coil:
