Home >> Pontiac >> 1985 >> Fiero L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Performance Test - EST With Carburetor

Performance Test - EST With Carburetor

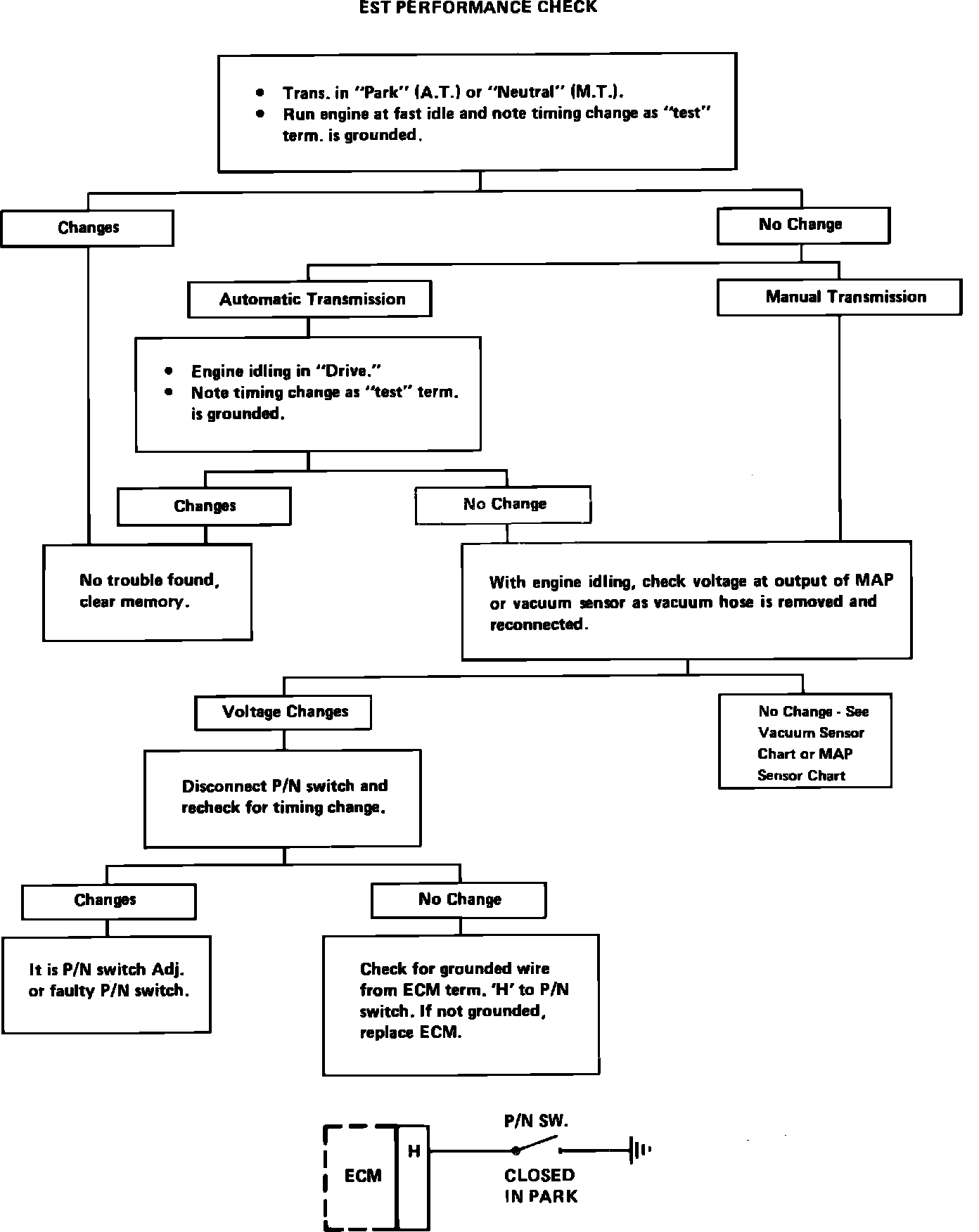

Fig. 4 EST performance check. All carbureted models:
