Headlamp Dimmer Switch: Service and Repair

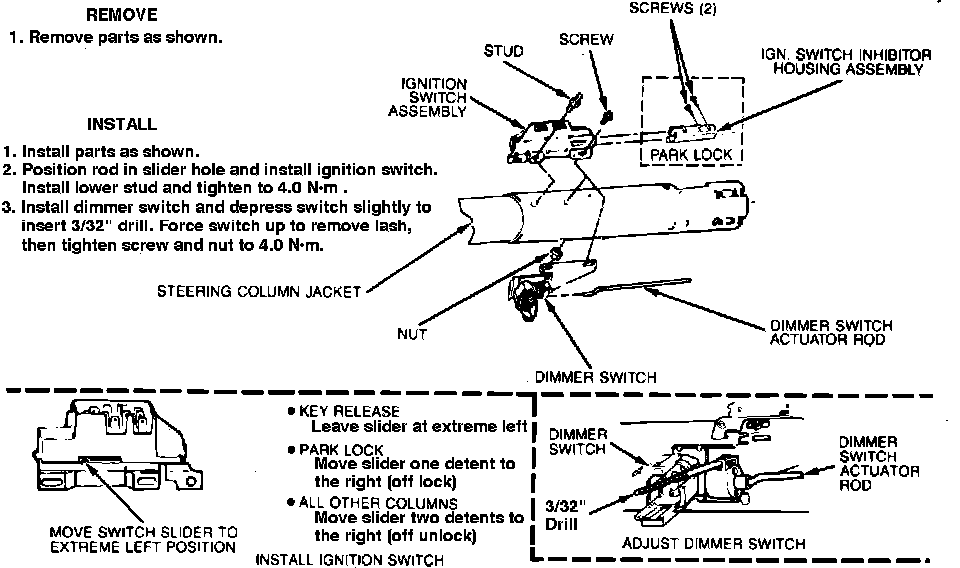

Fig. 2 Ignition & dimmer switch replacement. Except tilt column:

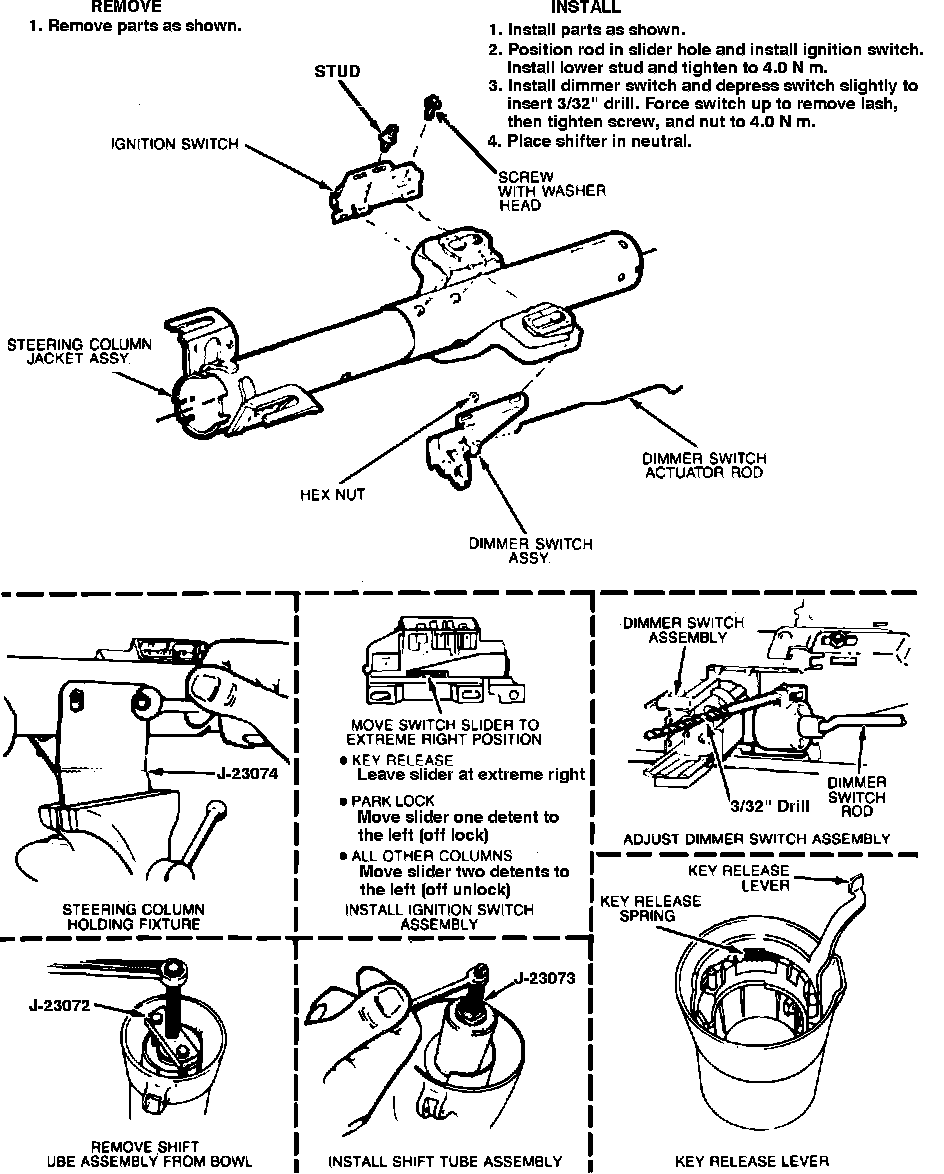

Fig. 3 Ignition & dimmer switch replacement. Tilt column:

1. Remove turn signal switch as described under ``Turn Signal Switch, Replace.''
2. Refer to Figs. 2 and 3 to replace ignition and dimmer switches.
