Instrument Cluster / Carrier: Service and Repair

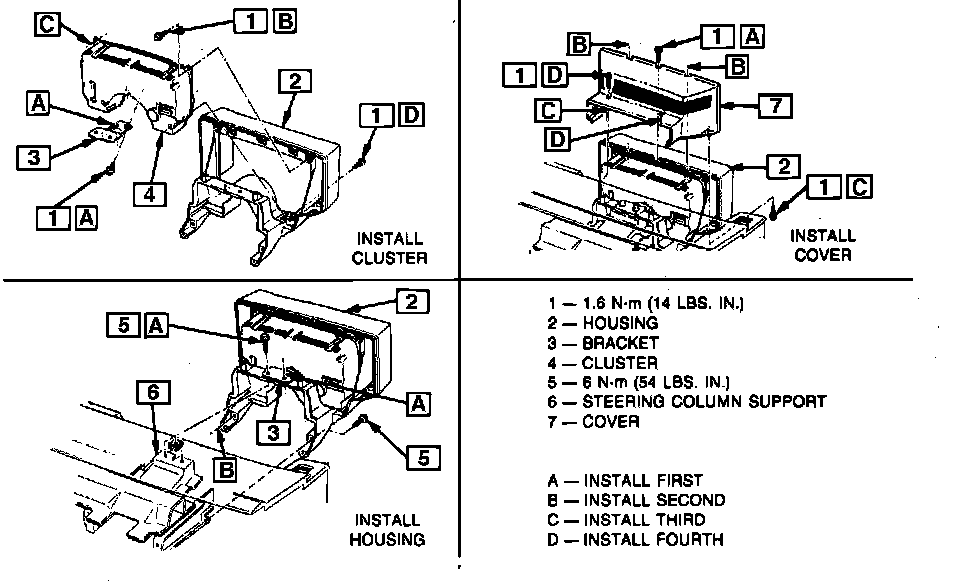

Fig. 11 Instrument cluster. 1984---86:

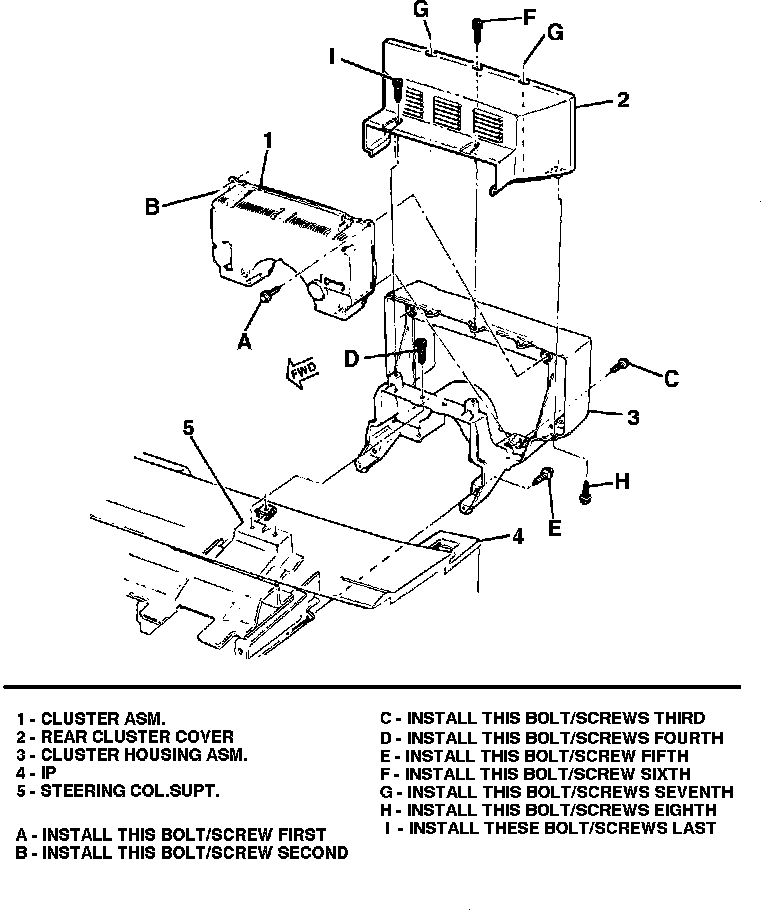

Fig. 12 instrument cluster. 1987---88:

1. Disconnect battery ground cable.
2. Remove rear cluster cover, front trim plate and steering column cover.
3. Remove instrument cluster attaching screws.
4. Pull cluster rearward and disconnect all electrical connectors, then remove cluster from vehicle, Figs. 11 and 12.
5. Reverse procedure to install.
