Pontiac
>>
1985
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate Solenoid
>>
With Manual Transaxle
With Manual Transaxle

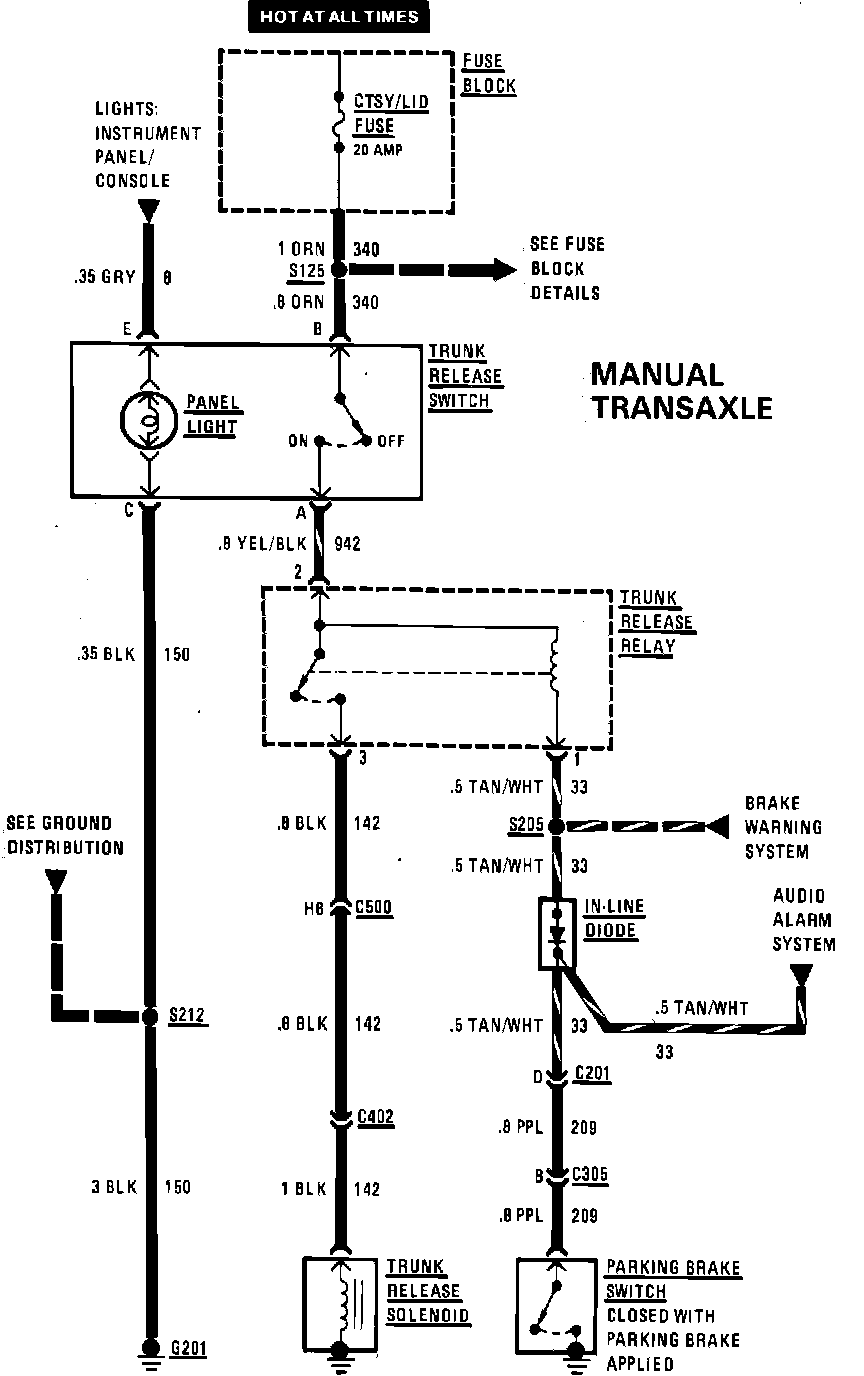

Trunk Release Wiring Circuit With Manual Transaxle:
