Idle Speed Control & Vehicle Data Sensors

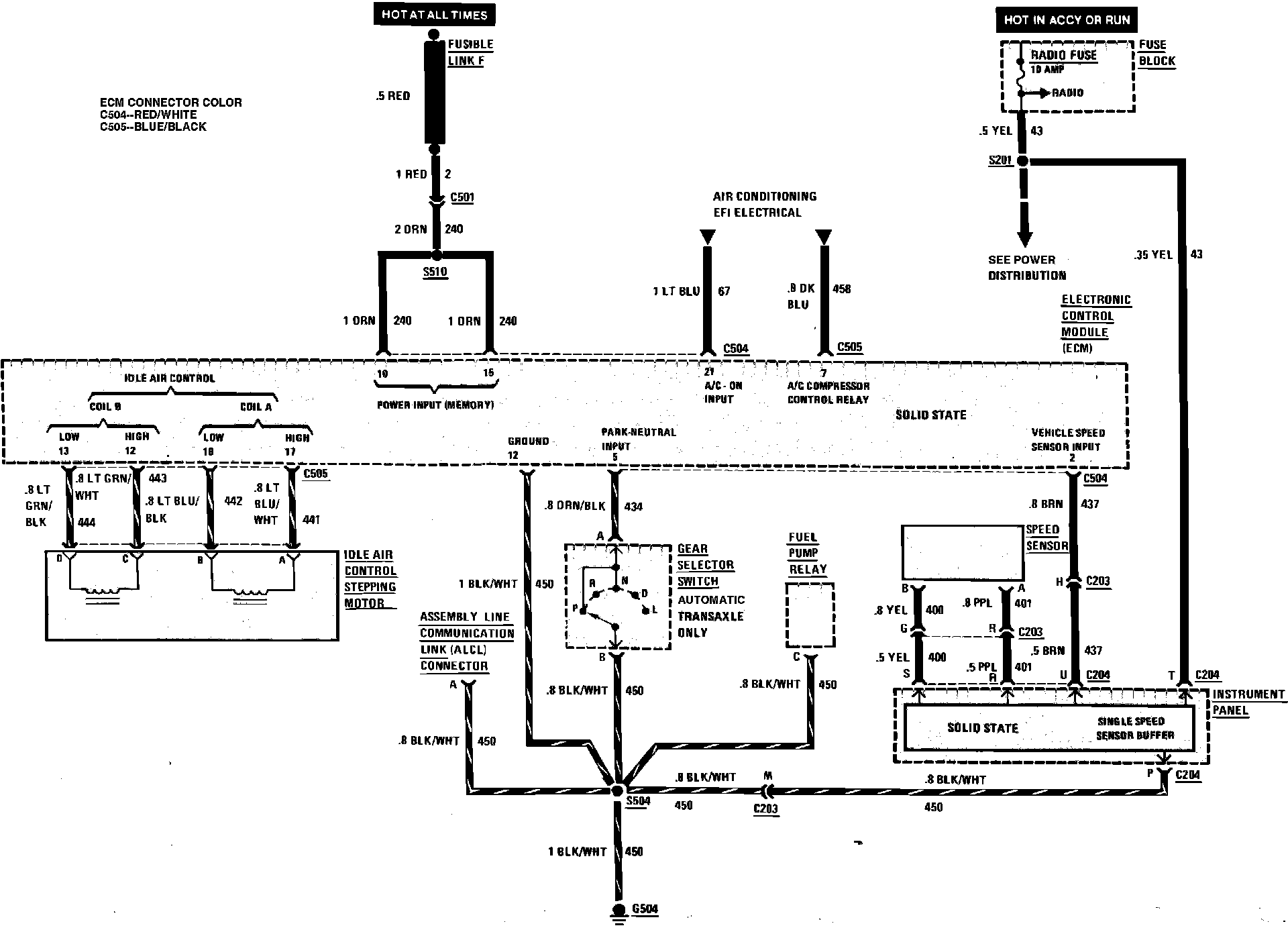

Electronic Fuel Injection Wiring Circuit (Idle Air Control & Vehicle Data Sensors):
