Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

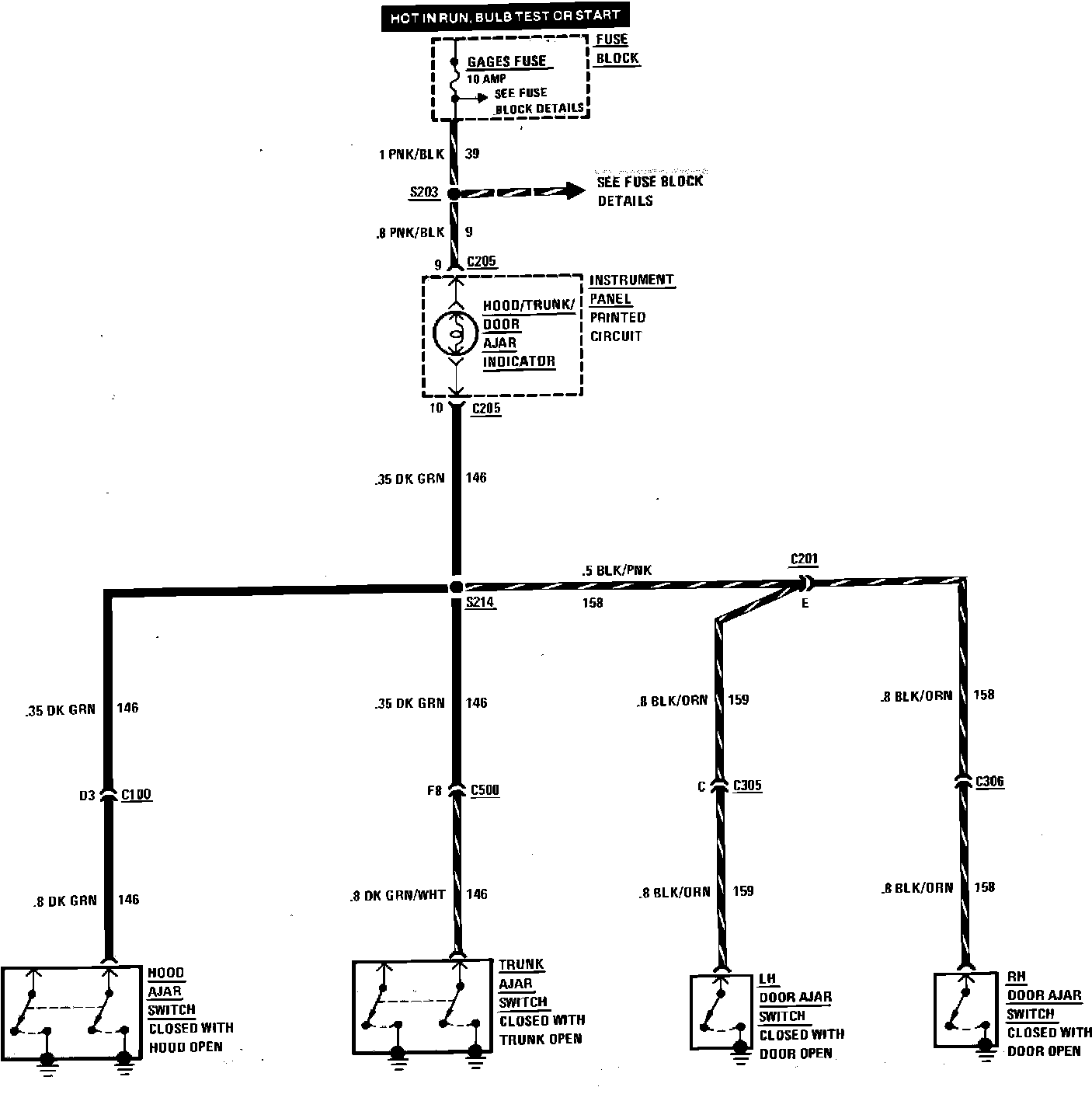

Door, Hood & Trunk Ajar Wiring Circuit:
