Camshaft Timing Chain & Sprockets: Removal

  1. Remove crankcase front cover. Align marks on camshaft sprocket with marks on crankshaft sprocket. See Fig 1. Remove attaching bolts, timing chain tensioner and damper.

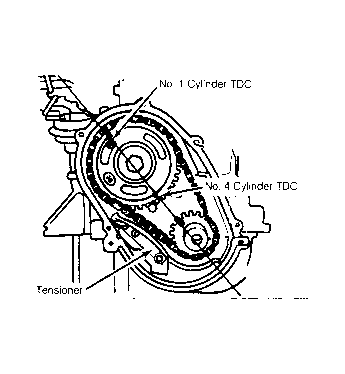

    Fig 1: Timing Chain Sprocket Alignment
    G73182
  2. Remove camshaft sprocket and timing chain. Using Sprocket Puller (J-22888-20), remove crankshaft sprocket.
