Removal (Firebird)

Remove lower trim plates and instrument trim plate. Remove switch assembly retaining screws, depress tangs and pull switch out of panel. Disconnect wiring harness from switch.

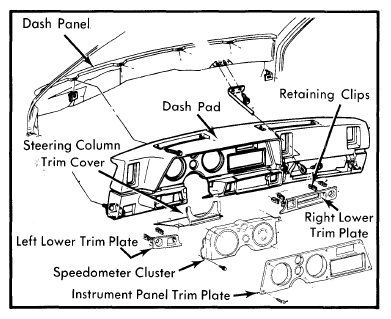

Fig 1: J2000 Instrument Panel
G09358831Courtesy of GENERAL MOTORS COMPANY
