General Motors (Flexible Coupling)

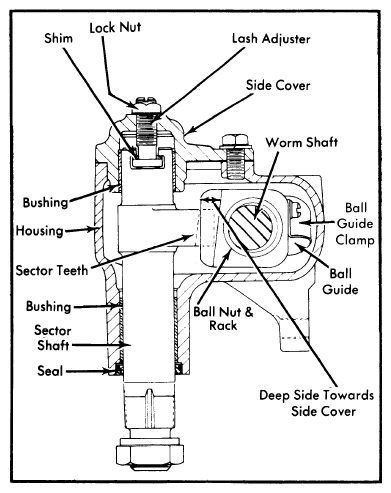

Install flexible coupling onto the steering gear wormshaft splined end. Align the flat in the coupling with the flat on the shaft. Install coupling clamp bolt and torque to specifications. Install intermediate shaft to flexible coupling and loosely install flange bolts. Align flexible coupling pins in center of intermediate shaft flange slots and torque flange-to-coupling bolts to specifications. Install coupling shield.
