Removal & Installation

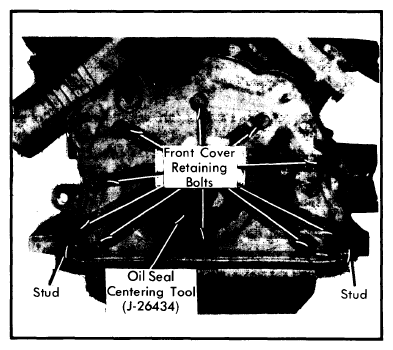

Remove front cover and pry oil seal out with large screwdriver. Be careful not to bend cover. Place open end of seal toward rear of cover, support cover with suitable tool (J-9519-17), and drive seal into cover. Reinstall cover, using aligning tool (J-26434) to center seal on crankshaft. See Fig 1.
