Brake And Vacuum Switches

With pedal fully depressed, push switches into holder until fully seated. Pull pedal back to move switches to proper position. Depress and pull pedal to stop once more to ensure switches are seated in proper adjusted position.

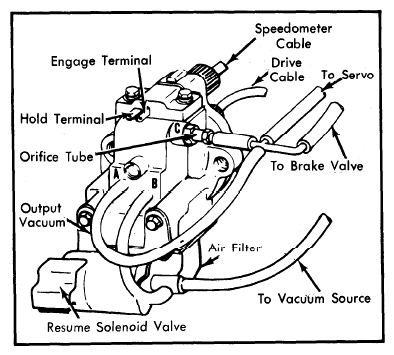

Fig 1: Cruise Master Transducer
G09317046Courtesy of GENERAL MOTORS COMPANY
