One Lock Inoperative

Check connections at door lock motor. Check continuity between switch and motor. If wiring is good, replace motor.

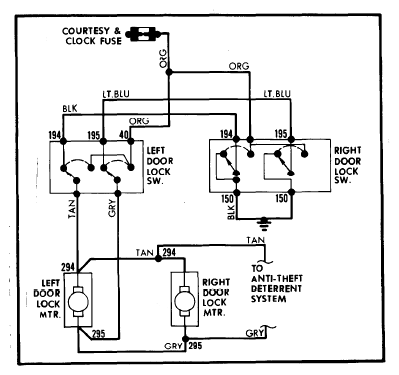

Fig 1: Corvette Power Door Lock Wiring Diagram
G09316975Courtesy of GENERAL MOTORS COMPANY
