Alternator Indicator

Indicator on instrument panel should come on with ignition switch on and engine not running or until engine is accelerated above 900 RPM after being started. When alternator voltage output is above battery voltage, indicator light should turn off.

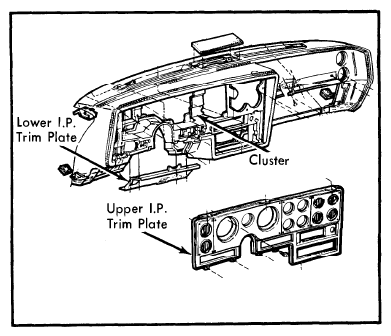

Fig 1: Grand Prix, Grand Lemans & Lemans Instrument Cluster
G09351769Courtesy of GENERAL MOTORS COMPANY
