Oldsmobile, Cadillac & Chevrolet

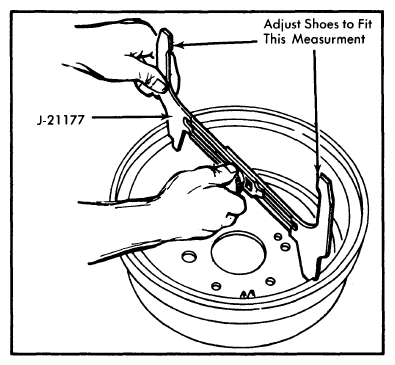

Remove wheels and drums. Make sure parking brake cable and linkage are free. Measure drum inside diameter using suitable tool (J-21177). Adjust shoes to fit opposite side of measuring tool. See Fig 1. Install drums and wheels. Drive vehicle alternately backwards and forwards, applying brakes moderately.
