Home >> Pontiac >> 1981 >> T1000 2D Hatchback, Automatic Trans >> Repair and Diagnosis (Single Page) >> Brakes >> Mechanical - Hydraulic >> Brake Systems - DELCO-Moraine Automatic Adjuster >> Adjustment >> Brake Shoe Adjustment >> Buick & Pontiac

Buick & Pontiac

Remove adjusting hole cover. Install a tool through adjusting hole to move self adjuster lever off adjusting screw. Use tool to turn screw and expand brakes until wheel can just be turned by hand. Make sure drag is equal on both wheels. Back off adjusting screw 30 notches. Wheel should not drag after 12 notches. If drag is noticed at this point, check parking brake cable. If brakes still drag lightly after 30 notches, back off 1 or 2 more notches.

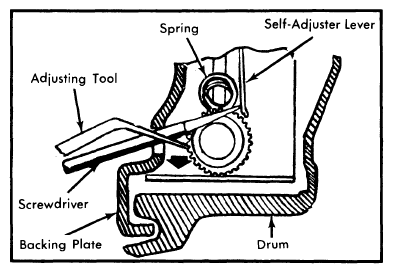

Fig 1: Adjusting Brake Shoe Clearance (Through Backing Plate)
G09330751Courtesy of GENERAL MOTORS COMPANY
