Removal (American Motors)

Place key in "LOCK" position. Insert a thin tool (screwdriver or knife blade) into slot next to upper right switch mounting screw boss. Depress lock cylinder retaining tab and at same time pull lock cylinder from housing.

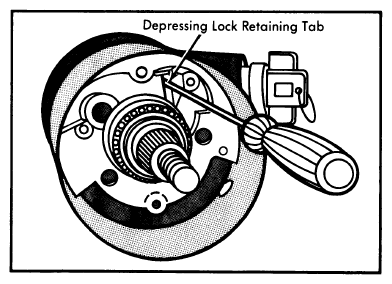

Fig 1: Depressing Lock Cylinder Retaining Tab On American Motors Vehicles

Courtesy of NOT AVAILABLE
