American Motors (1965-73)

Remove transmission, starter, throwout bearing and sleeve, and clutch housing. Mark flywheel and clutch cover for reassembly. Remove clutch fork. When removing clutch cover, loosen attaching screws in rotation, to avoid warping cover.

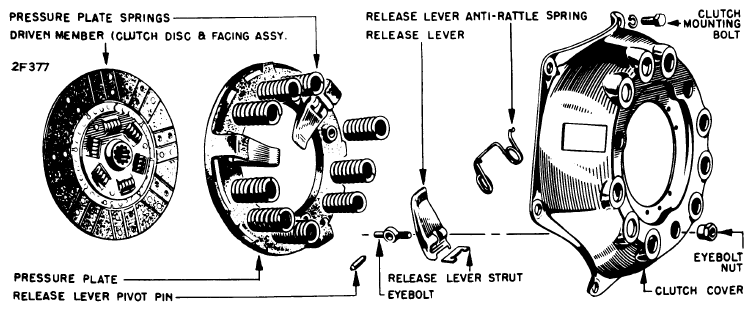

Fig 1: Borg & Beck Clutch Assembly (Typical)
G09324279Courtesy of CHRYSLER GROUP, LLC
