The mechanical instrument cluster is an electromechanical module which receives most of its information from Body Control Module (BCM) via CCD bus.

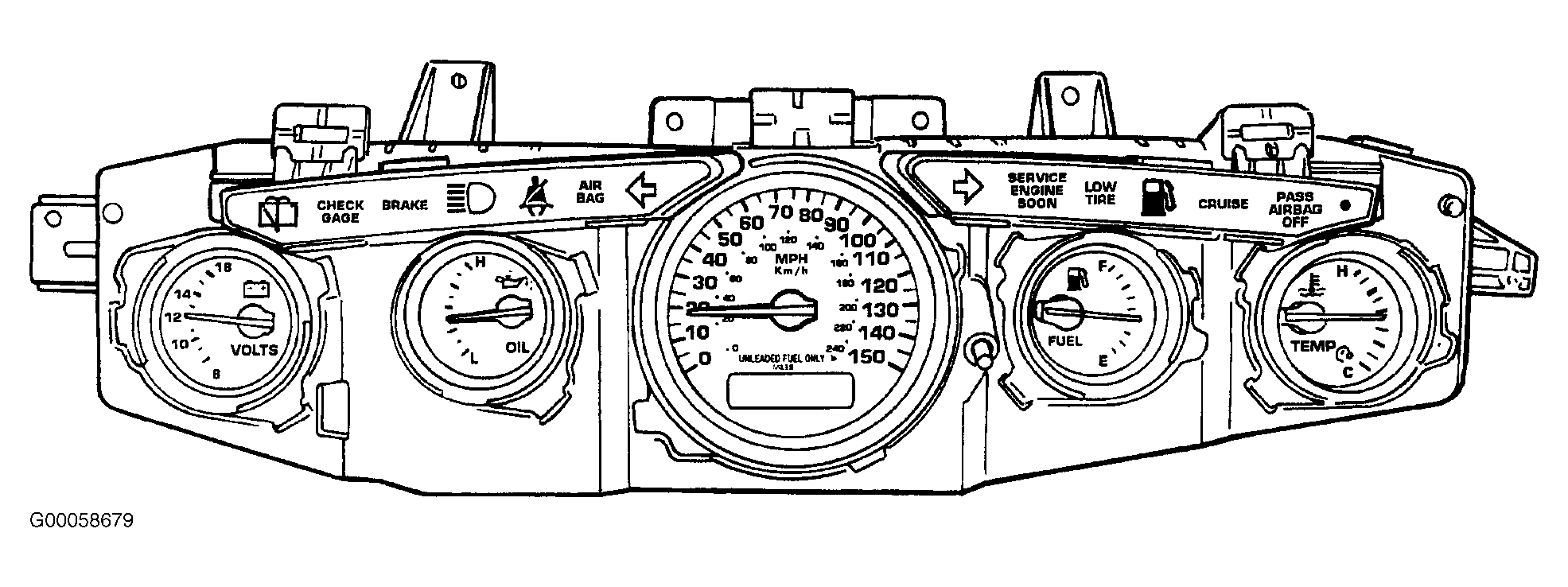

The cluster includes the following displays. See Fig 1:
- 150 MPH (240 KM/h) Speedometer
- Odometer/trip odometer and transmission range indicator for autostick transmission.
- Fuel Gauge
- Oil Gauge
- Voltage Gauge
- Temperature Gauge
The warning and information indicators include the following:
- Service Engine Soon
- Airbag
- CHECK Gauge
- Low Fuel
- Seat Belt
- Cruise
- Brake/Park Brake
- High Beam
- Low Washer Fluid
- Low Tire
- Vehicle Theft Security System Alarm LED Indicator
- Turn Signals
- Pass Airbag Off
The gauges are magnetic air-core type. When ignition switch is OFF, gauge pointers should rest at or below low graduation.
