1997 Models
The mechanical instrument cluster is an electromechanical module which receives most of its information from Body Control Module (BCM) via CCD bus.

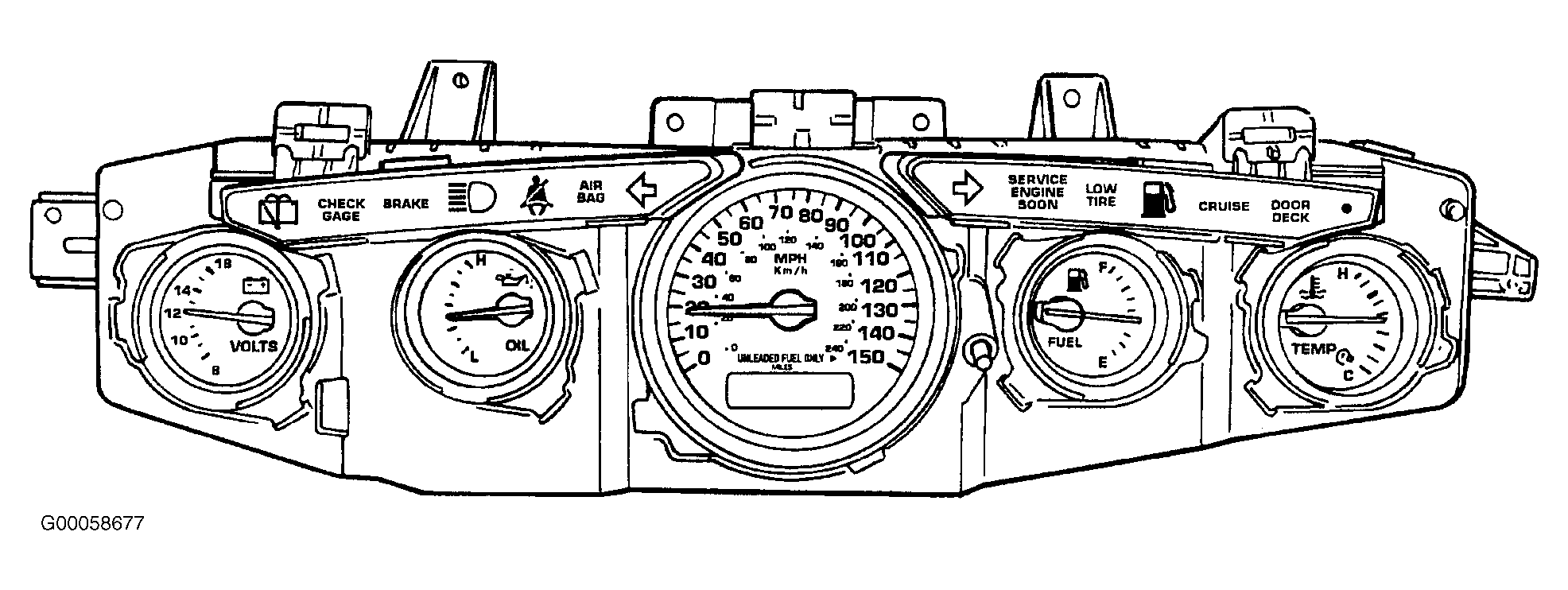

The cluster includes the following displays. See Fig 1:
- 150 MPH (240 KM/H) Speedometer
- Odometer/trip odometer and transmission range indicator for autostick transmission.
- Fuel Gauge
- Oil Gauge
- Voltage Gauge
- Temperature Gauge
- Security Alarm Indicator
The warning and information indicators include the following:
- Service Engine Soon
- Airbag
- CHECK Gauge
- Low Fuel
- Seat Belt
- Cruise
- Brake/Park Brake
- High Beam
- Low Washer Fluid
- Low Tire
- Vehicle Theft Security System Alarm LED Indicator
- Turn Signals
- Door/Decklid Ajar
The gauges are magnetic air-core type. When ignition switch is OFF, gauge pointers should rest at or below low graduation.
