Wiring Diagrams

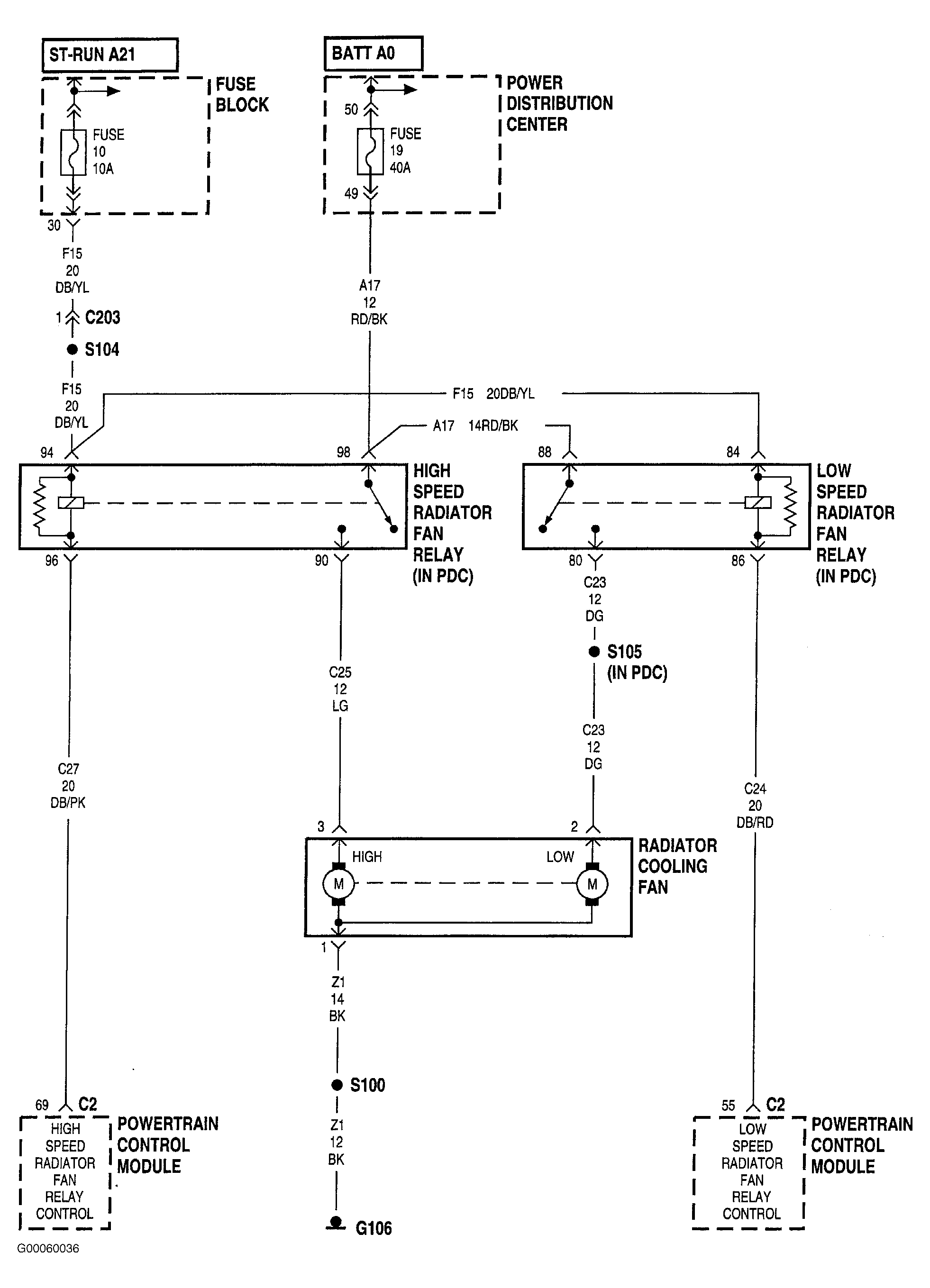

Fig 1: Radiator Cooling Fan Wiring Schematic

G00060036

Courtesy of CHRYSLER CORP.

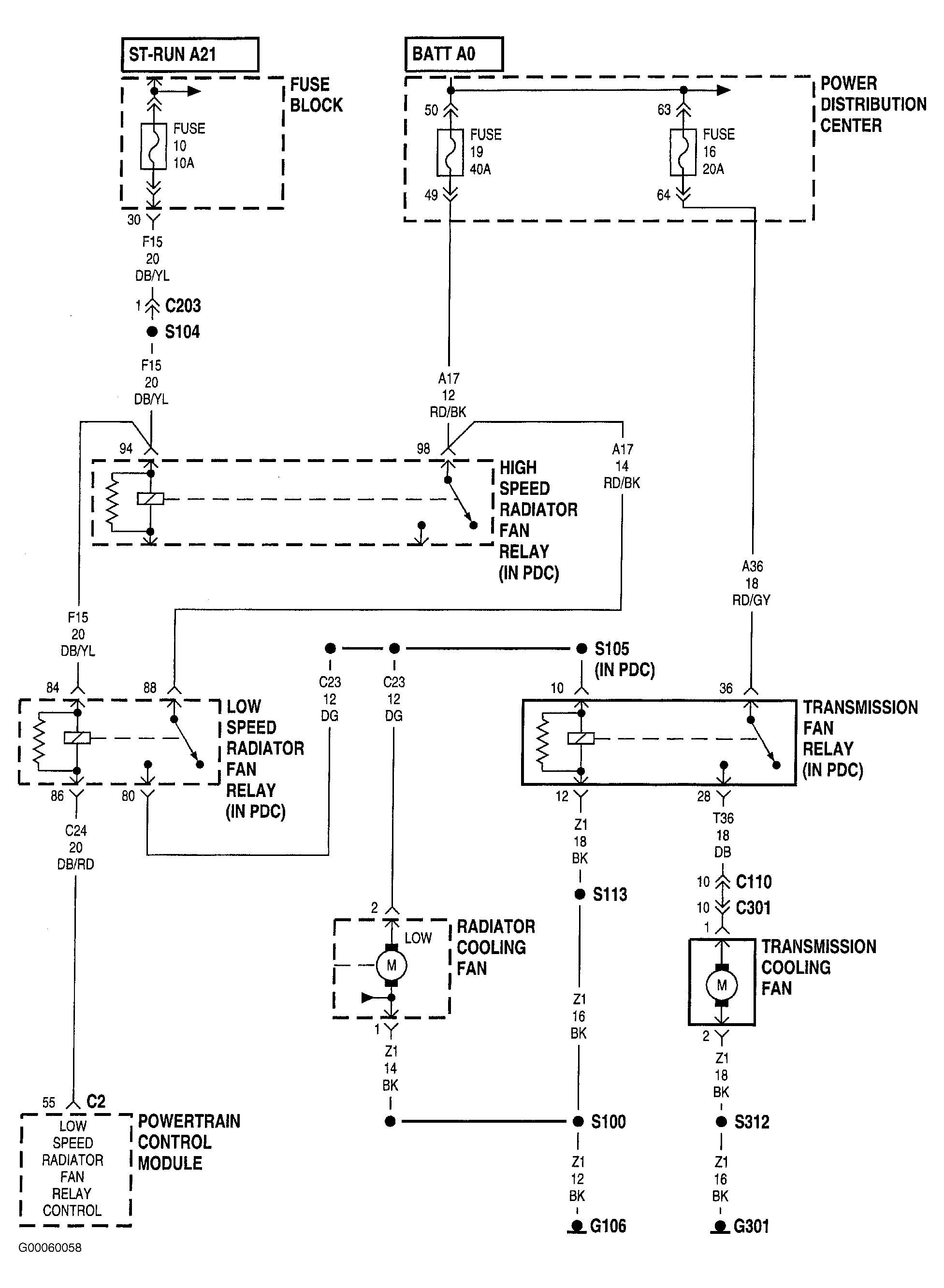

Fig 2: Transmission Oil Cooling Fan Wiring Schematic

G00060058

Courtesy of CHRYSLER CORP.
