Drain & Fill

  1. Hoist vehicle. Remove bell housing drain plug located underneath bell housing nose. See Fig 1 . Allow fluid to drain completely.
  2. If drain plug was removed, install drain plug and tighten. Remove bell housing fill plug. See Figure . Fill bell housing with SAE 5w30 engine oil to within 3/16" of fill hole bottom. Install fill plug.

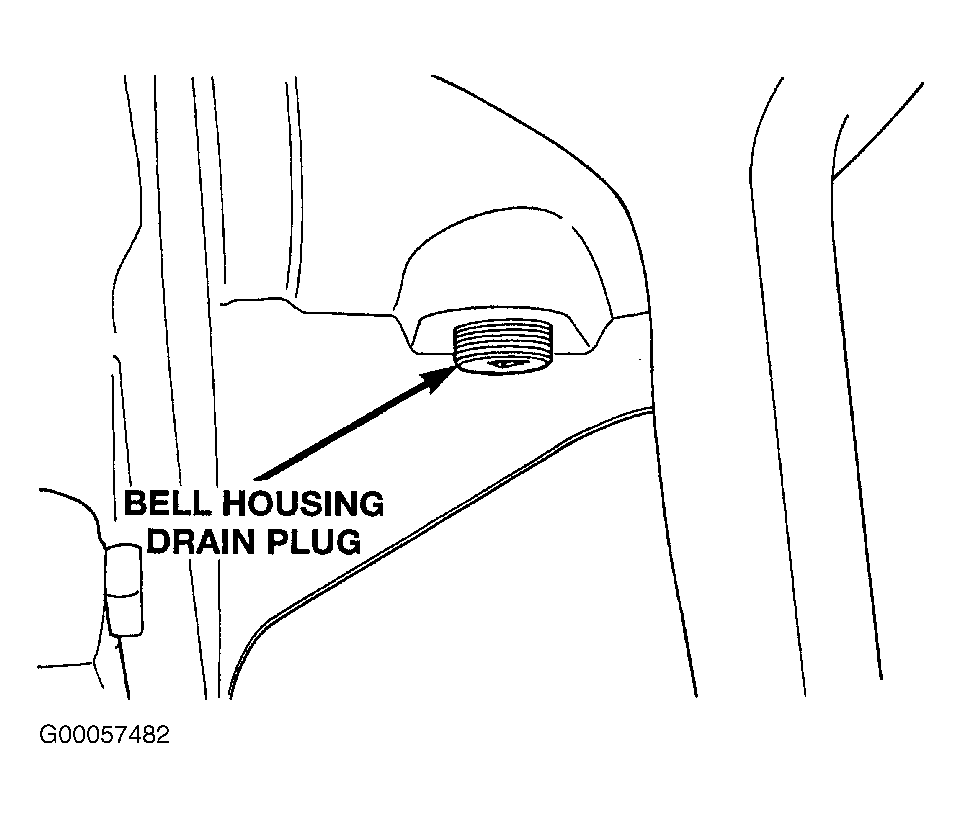

Fig 1: Bell Housing Drain Plug
G00057482Courtesy of CHRYSLER CORP.
