Window Switch (1997)

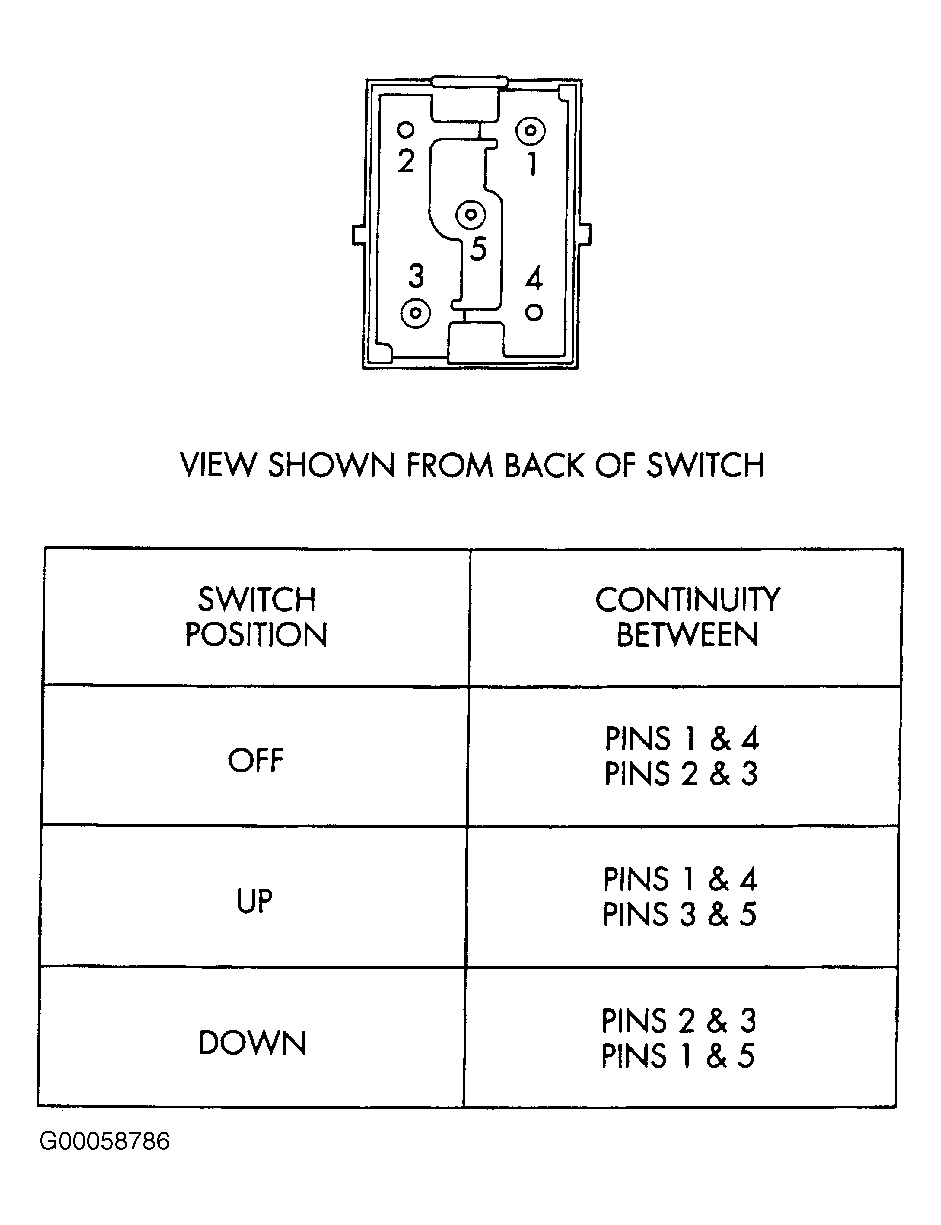

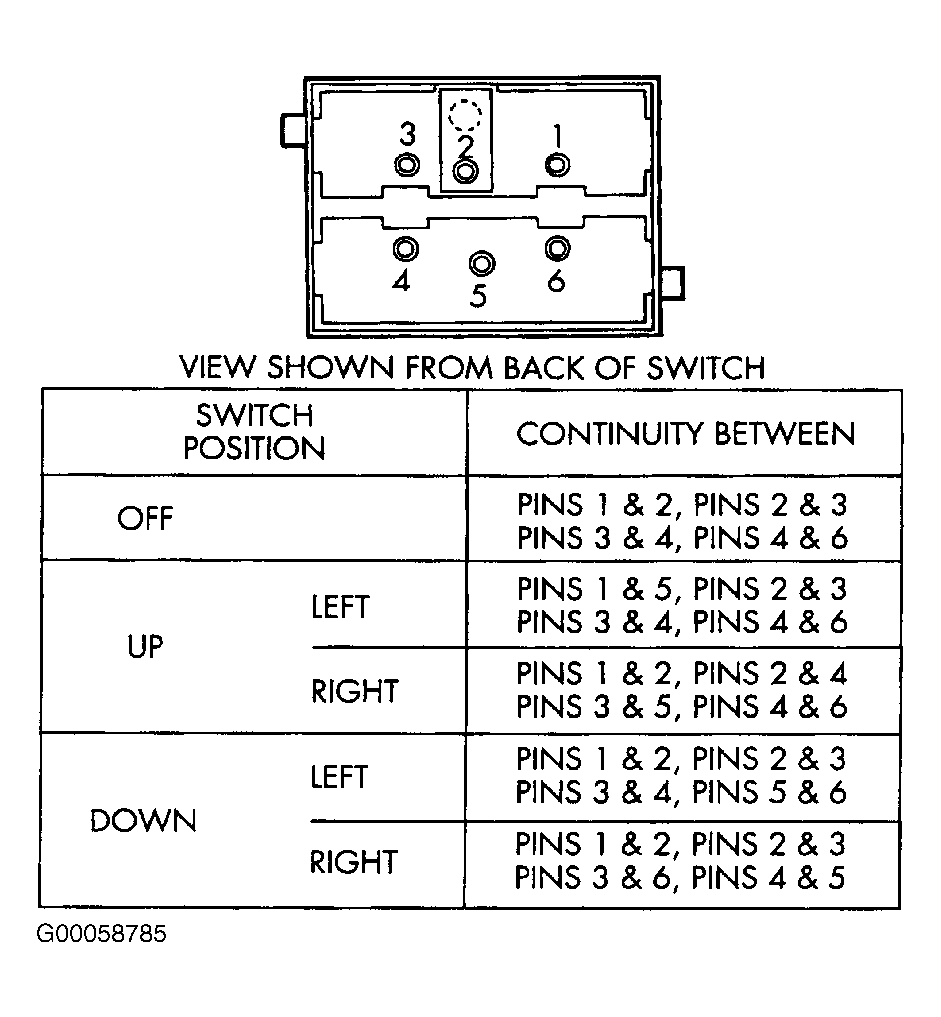

For switch testing, remove switch from its mounting in door trim panel. Use an ohmmeter to determine if continuity is correct. See Figure and Figure . If continuity is not correct, replace switch.
