Audio Diagnostic Test Procedures

CAUTION: The CD changer/player will only operate between approximate temperatures of -23°C and +65°C (-10°F and +145°F).

Whenever a radio malfunction occurs;

Check the following FUSES in instrument panel Fuse Block:
- Fuse 4 - Memory Feed
- Fuse 8 - Illumination
- Fuse 16 - Ignition Feed
NOTE: The vehicles are shipped with memory/interior lamp fuse disconnected.
Ensure, radio wire harness and all ground straps are properly connected before starting. See Fig 1 and Fig 2 , and appropriate repair procedures.

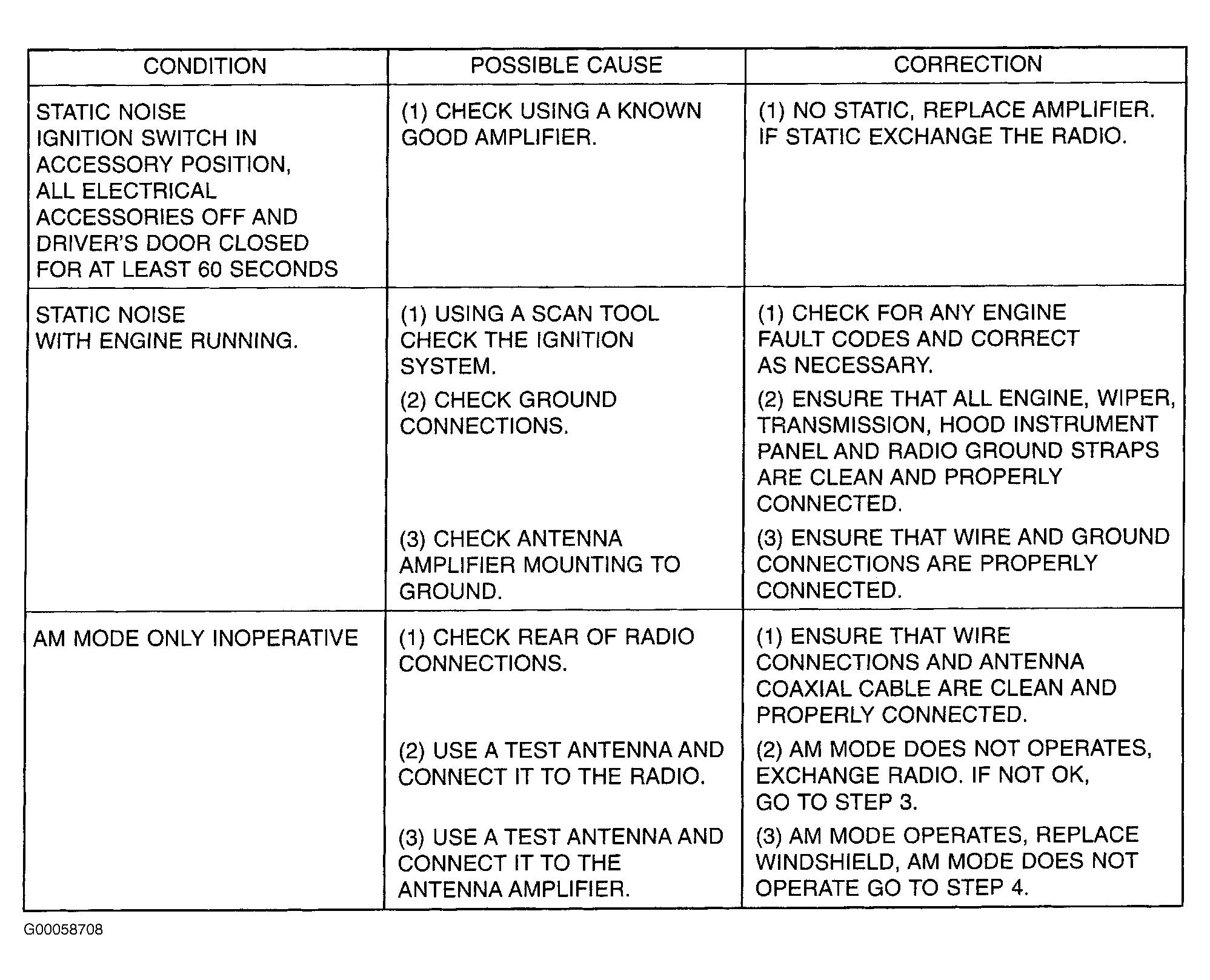

Fig 1: Audio System Diagnostic Table (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Audio System Diagnostic Table (2 Of 2)

Courtesy of CHRYSLER CORP.
