Camber Angle (Rear)
CAUTION:
When setting rear camber on this vehicle, the maximum lengths of the lateral links at the locations shown in illustration must not be exceeded. See Fig 1
. If these lengths are exceeded, inadequate retention of the turnbuckle to the inner and outer link may result.

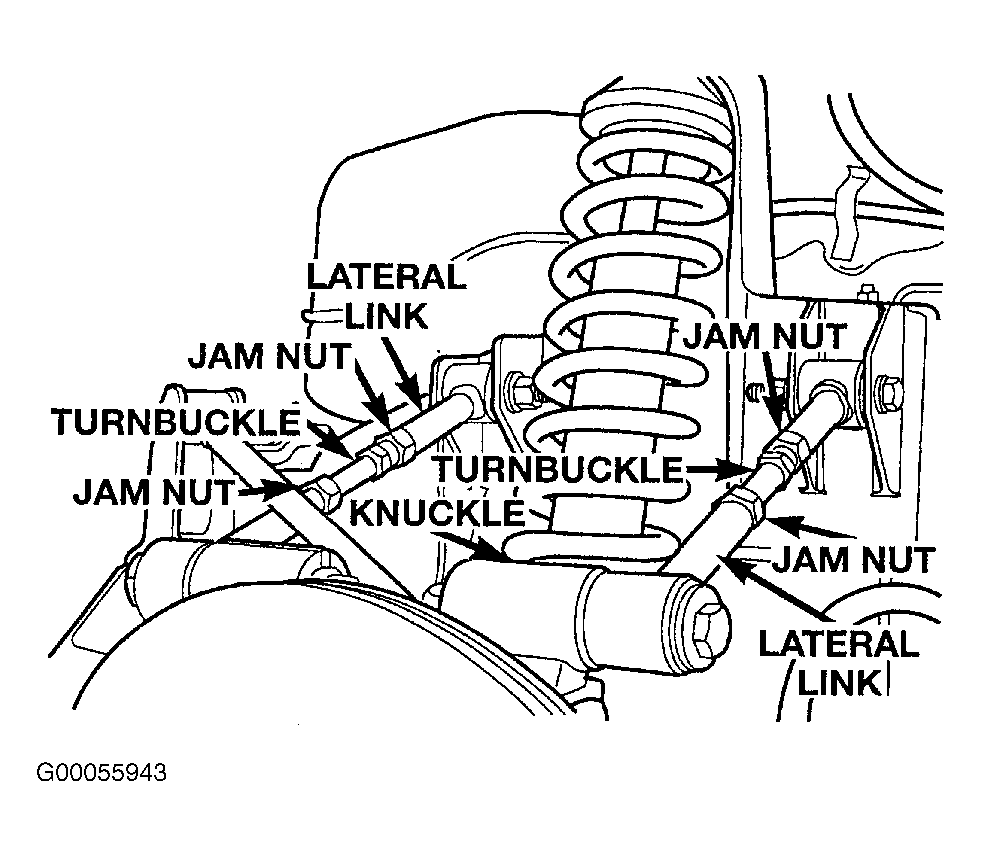

The rear camber angle on this vehicle is adjustable. The camber angle on the rear suspension is adjusted using the turnbuckles on the lateral links. See Fig 2 . By rotating both of the turnbuckles either inward or outward, the same number of turns at the same time, the top of the knuckle is moved inward or outward thus changing the camber angle of camber angle is to be set first and then the rear toe.
