Pump Pulley: Removal

NOTE: DO NOT press or hammer on shaft of power steering pump in an attempt to remove pulley. This will damage internal components of power steering pump.
  1. Mount power steering pump in a vise using one of mounting bosses on power steering pump. DO NOT clamp power steering pump in a vise by body of power steering pump.

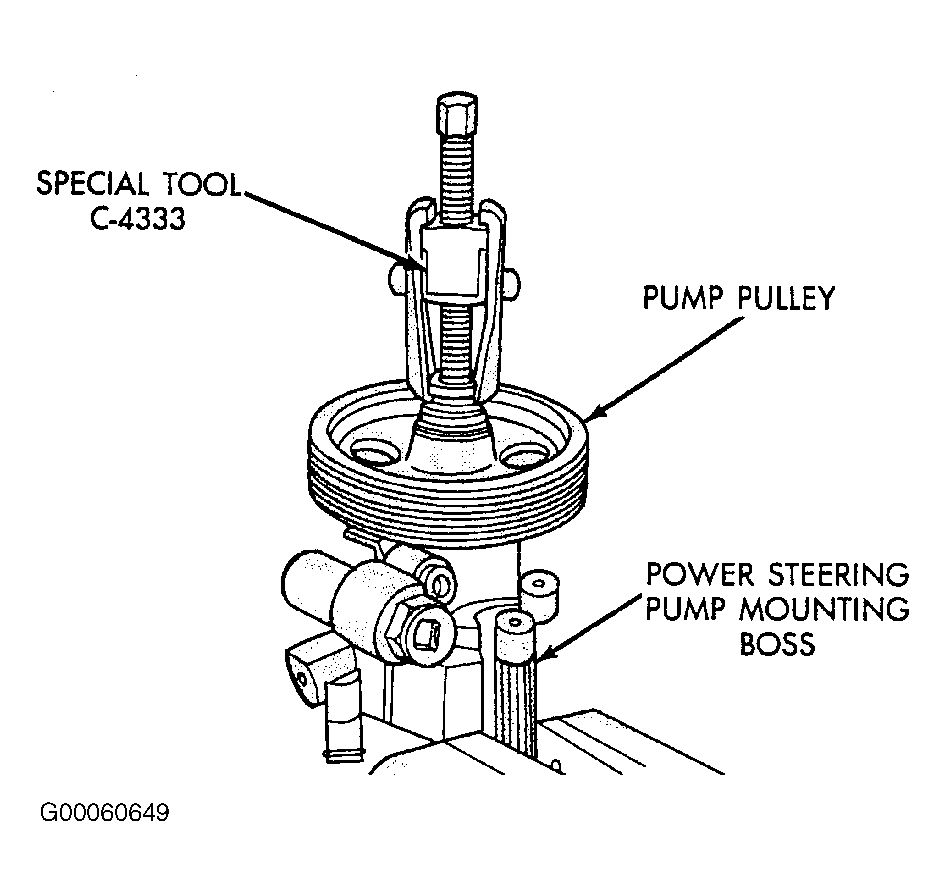

  2. Remove pulley from shaft of power steering pump using Puller (ST C-4333). See Figure.
